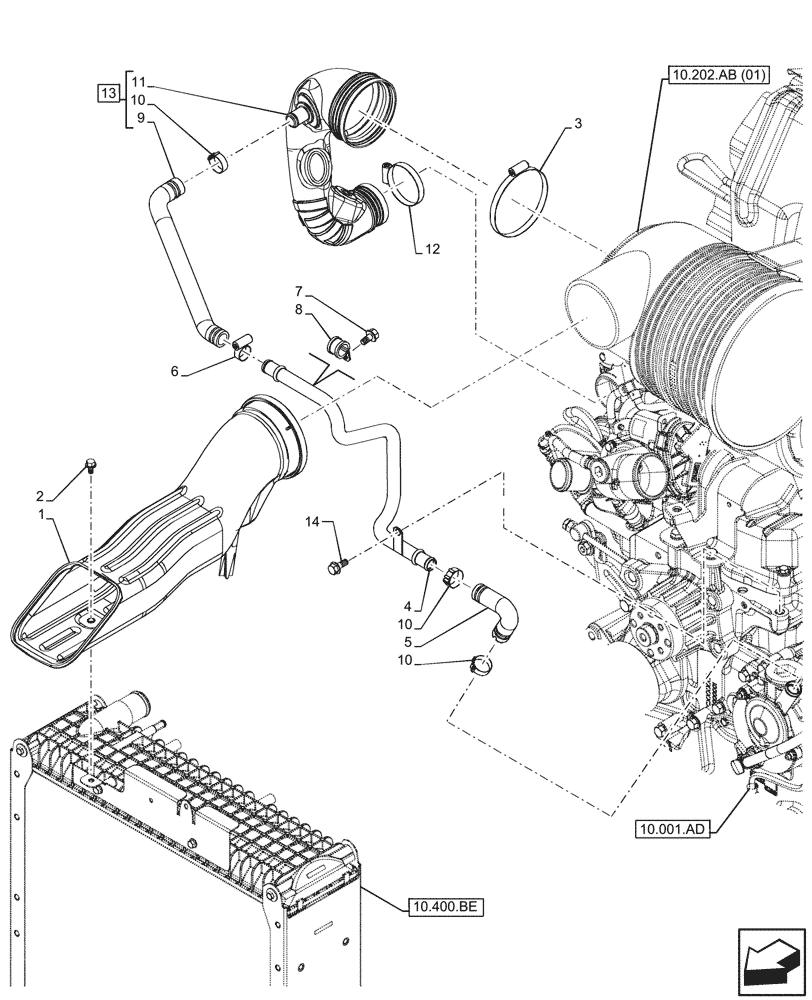

Запчасти Case IH FARMALL 120C (10.202.AD) - VAR - 390200 - AIR CLEANER, LINE (10) - ENGINE

1

84589282

AIR DUCT

Snorkel

1шт.

2

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

3

47809513

HOSE CLAMP

90 x 110mm

1шт.

4

47768306

PIPE

From Air Cleaner to Engine, 18mm OD

1шт.

5

84581948

SLEEVE,16.7mm ID x 122.6mm L

1шт.

6

47471883

HOSE CLAMP,50mm - 70mm

50 x 70mm

1шт.

7

87342187

SCREW,Hex, M8 x 16mm

M8 x 16

2шт.

8

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

Closed 18mm Insul M8

1шт.

9

84465710

HOSE,16.7mm ID x 288.6mm L

Blow-by, 18mm ID

1шт.

10

13127670

PIPE CLAMP,27mm - 24mm

24 x 27mm

3шт.

11

84235119

INLET MANIFOLD

1шт.

12

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70mm

1шт.

13

84252092

INLET MANIFOLD

ASSY, Incl 9, 10 (Qty 1), 11

1шт.

14

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.
