Запчасти Case IH FARMALL 120C (90.116.AC[02]) - VAR - 744673 - FRONT FENDER (400MM), LARGE (20’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

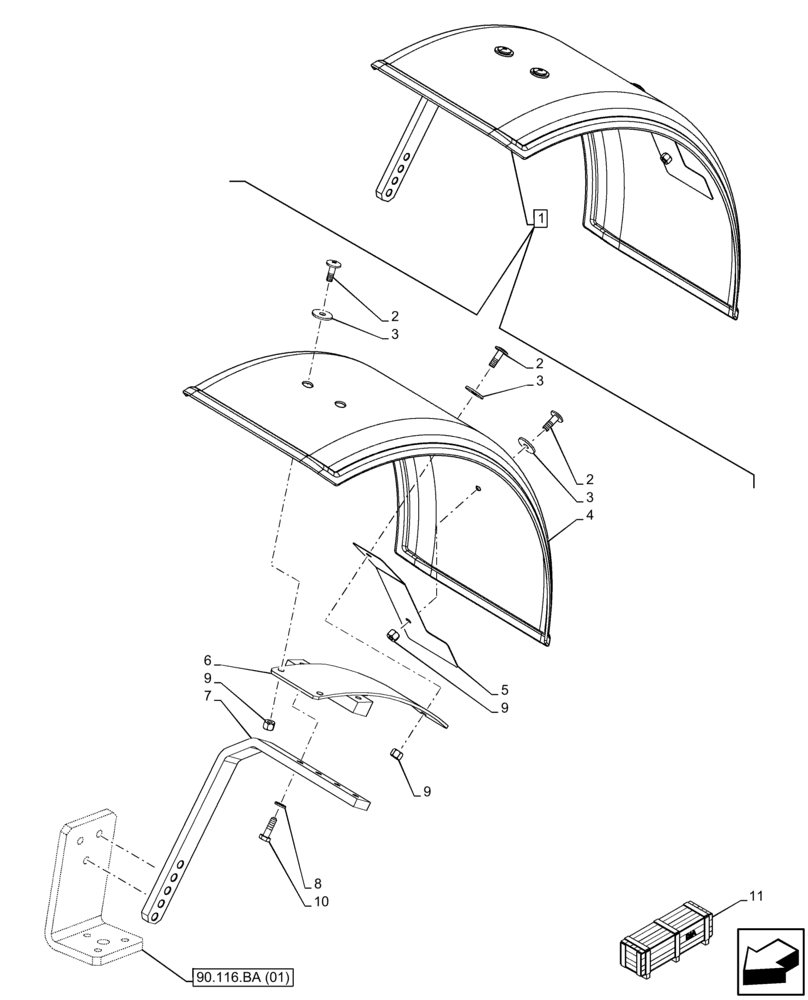

Схема запчастей Case IH FARMALL 120C - (90.116.AC[02]) - VAR - 744673 - FRONT FENDER (400MM), LARGE (20’), 4WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
90.116.ba (01)
3
2
5
11
3
6
4
9
7
2
1
9
9
2
10
3

Артикул

Название

Примечание

Количество

1

47393663

FRONT FENDER,400mm

ASSY, RH, Incl 2 - 10

1шт.

1

47393678

FRONT FENDER,400mm

ASSY , LH, Incl 2 - 10

1шт.

2

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

4шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

4

5185182

COVER ASSY

1шт.

5

5179705

REINFORCEMENT

RH

1шт.

5

5179701

REINFORCEMENT

LH

1шт.

6

5179697

FRAME

RH

1шт.

6

5179698

FRAME

LH

1шт.

7

47393235

BRACKET

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

9

12574511

LOCK NUT,M10 x 1.25, Cl 8

4шт.

10

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

11

710168700

DIA KIT, TRACTOR

Front Fender (400mm), Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
