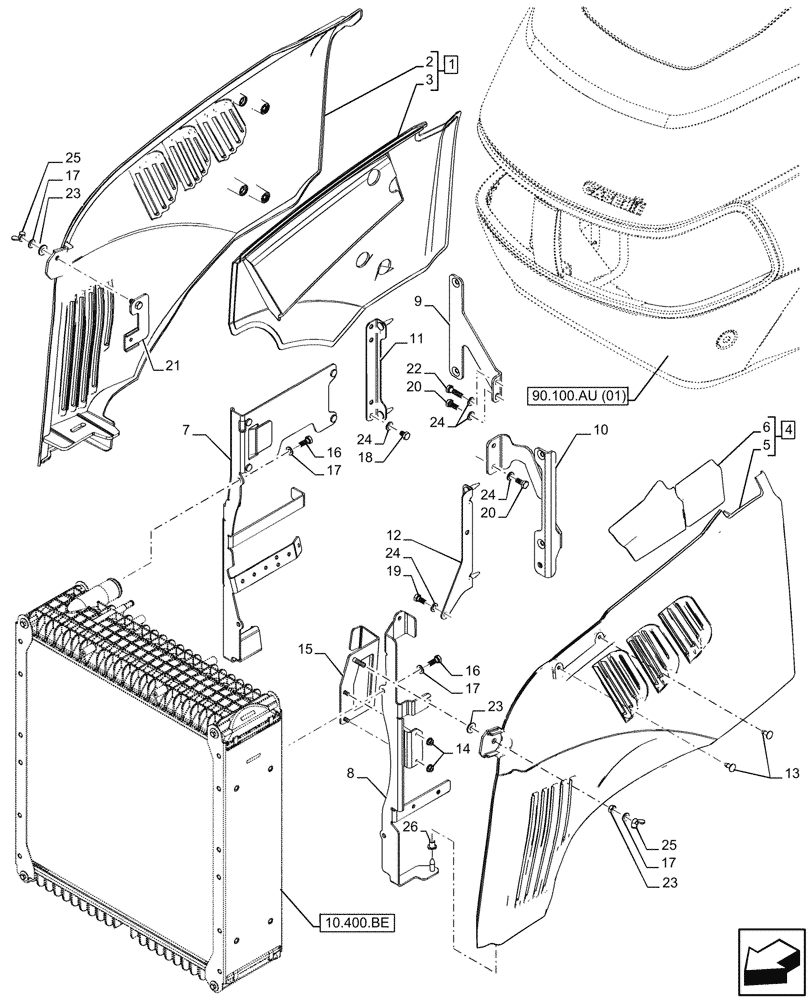

Запчасти Case IH FARMALL 120C (90.100.AC) - VAR - 330507, 330512, 330505 - HOOD, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47458840

SIDE PANEL

ASSY , RH, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

3

47460432

SHIELD

Heat

1шт.

4

47649615

SIDE PANEL

ASSY , LH, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Panel, Incl in 4

1шт.

6

47649609

SHIELD

Heat

1шт.

7

47523036

BRACKET

RH

1шт.

8

47564726

BRACKET

LH

1шт.

9

84546520

BRACKET

RH

1шт.

10

47617509

BRACKET

LH

1шт.

11

84497480

BRACKET

1шт.

12

47609955

BRACKET

1шт.

13

14592587

BUTTON,Button, M6.50 x 3.50mm

2шт.

14

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

15

47567857

BRACKET

LH

1шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

18

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

19

86625007

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

20

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

21

84535050

BRACKET

1шт.

22

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

23

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

24

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

9.2 x 16 x 1.5mm

8шт.

25

10102001

WING NUT,Wing Nut, M8 x 1.25

M8

2шт.

26

84599617

BUSHING,7.8mm ID x 9.8mm OD x 14mm L

2шт.
