Запчасти Case IH FARMALL 120C (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

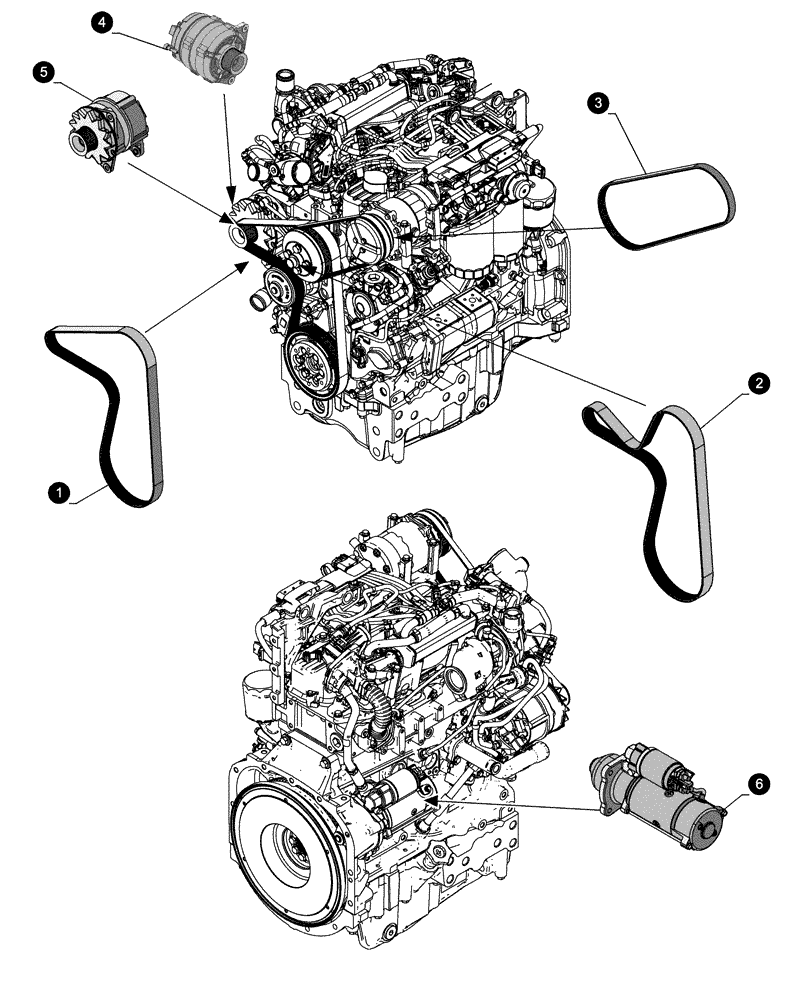

Схема запчастей Case IH FARMALL 120C - (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
3
4
6
2
5
1

Артикул

Название

Примечание

Количество

1

84426014

BELT,28mm W x 1432mm L, 8 Ribs

Main Drive, L/CAB

1шт.

2

47470491

BELT,28.48mm W x 1507mm L, 8 Ribs

Main Drive, W/CAB

1шт.

3

47398208

BELT,21.36mm W x 782mm L, 6 Ribs

A/C Compressor, W/CAB

1шт.

4

47524426

ALTERNATOR,14V, 150A, W/Pulley

W/CAB

1шт.

5

47383500

ALTERNATOR,14V, 120A, W/Pulley

L/CAB

1шт.

6

84208903

STARTER MOTOR,12V, 4.2kW

1шт.

Выбрано товаров: 6
