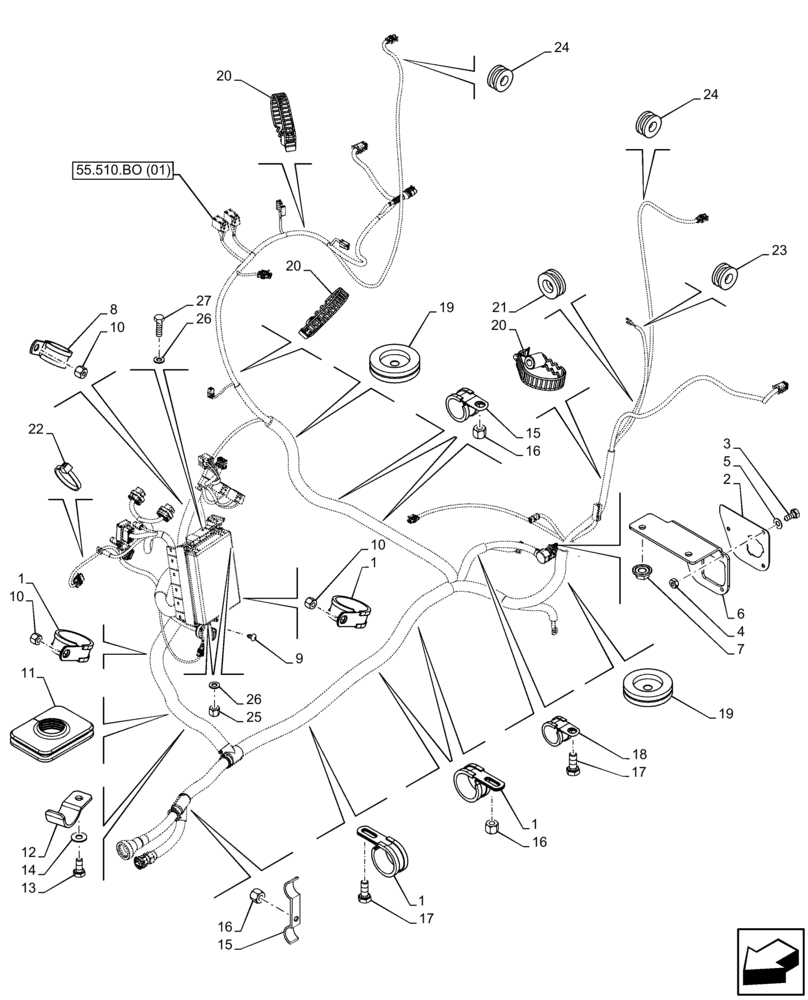

Запчасти Case IH FARMALL 120C (55.510.BO[02]) - MAIN HARNESS, W/O CAB, CLIP (55) - ELECTRICAL SYSTEMS

1

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

5шт.

2

84230590

RETAINING PLATE

1шт.

3

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

3шт.

4

10794011

NUT,M4, Cl 8

3шт.

5

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

6

47393042

BRACKET

1шт.

7

13046111

LOCK NUT,Flg Lock, M6

M6

4шт.

8

10419501

CLAMP,22mm, Coat, P Type

22mm

1шт.

9

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

10

12574211

NUT,M6 x 1, Cl 8

3шт.

11

84408117

GROMMET

1шт.

12

84401102

BRACKET

1шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

14

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

15

47536204

BRACKET

1шт.

16

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

5шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

10450790

RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type

22mm

1шт.

19

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

M28 x 36 x 46mm

2шт.

20

85805383

CABLE TIE

3шт.

21

10398280

GROMMET,14mm ID x 27mm OD x 11mm Thk

M14 x 20 x 27mm

1шт.

22

14560087

CABLE TIE,103mm, Black

1шт.

23

10399080

GROMMET,M10 x 16 x 22mm

M10 x 16 x 22mm

1шт.

24

10399180

RING,12mm ID x 24mm OD x 11mm Thk

M12 x 18 x 24mm

2шт.

25

15896211

NUT,M6, Cl 8

2шт.

26

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

3шт.

27

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.
