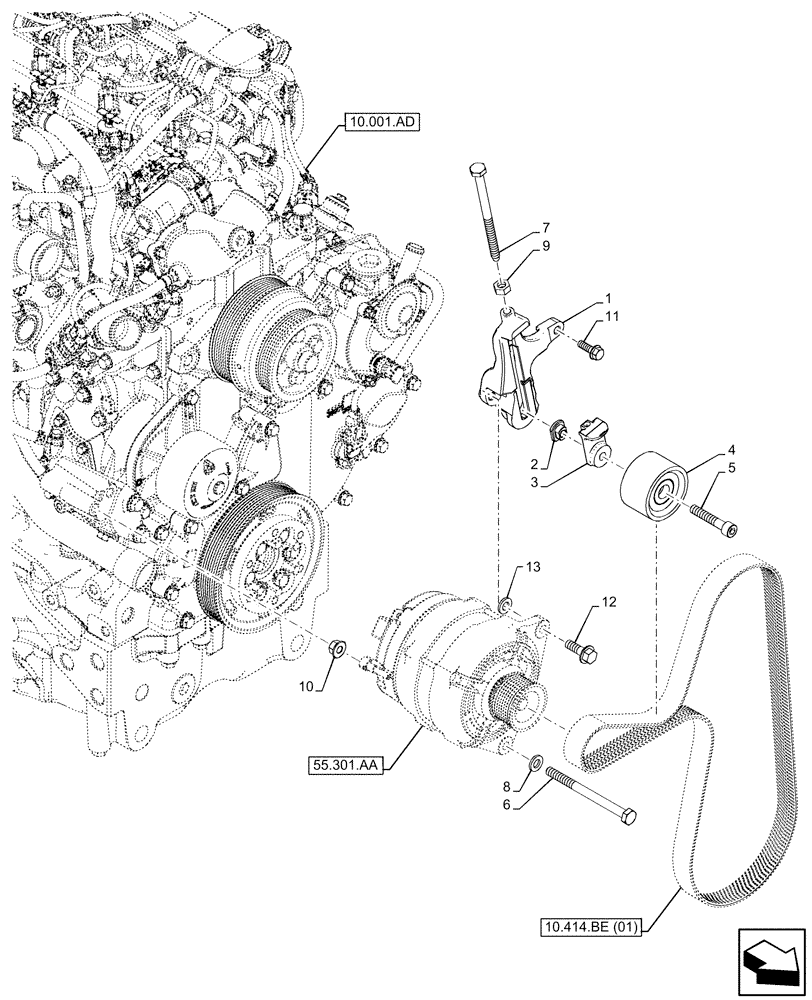

Запчасти Case IH FARMALL 120C (55.301.AB[01]) - VAR - 336839 - ALTERNATOR, BRACKET (55) - ELECTRICAL SYSTEMS

1

47462368

BRACKET

1шт.

2

47462371

THREADED BUSHING,10mm ID x 10.5mm L

M10

1шт.

3

47462374

SUPPORT

1шт.

4

47462365

IDLER,70mm OD

1шт.

5

87530644

SCREW,M10 x 55mm, Cl 8.8

1шт.

6

2168573

SCREW,Hex Soc Hd, M10 x 130mm, Cl 8.8

1шт.

7

47464504

ADJUSTMENT SCREW,Hex, M10 x 1.5 x 145mm, Cl 10.9

1шт.

8

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

1шт.

9

100016

NUT,M10 x 1.5, Cl 8

1шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

M10 x 1.25 10 ZND

1шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

12

14420234

SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

13

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.
