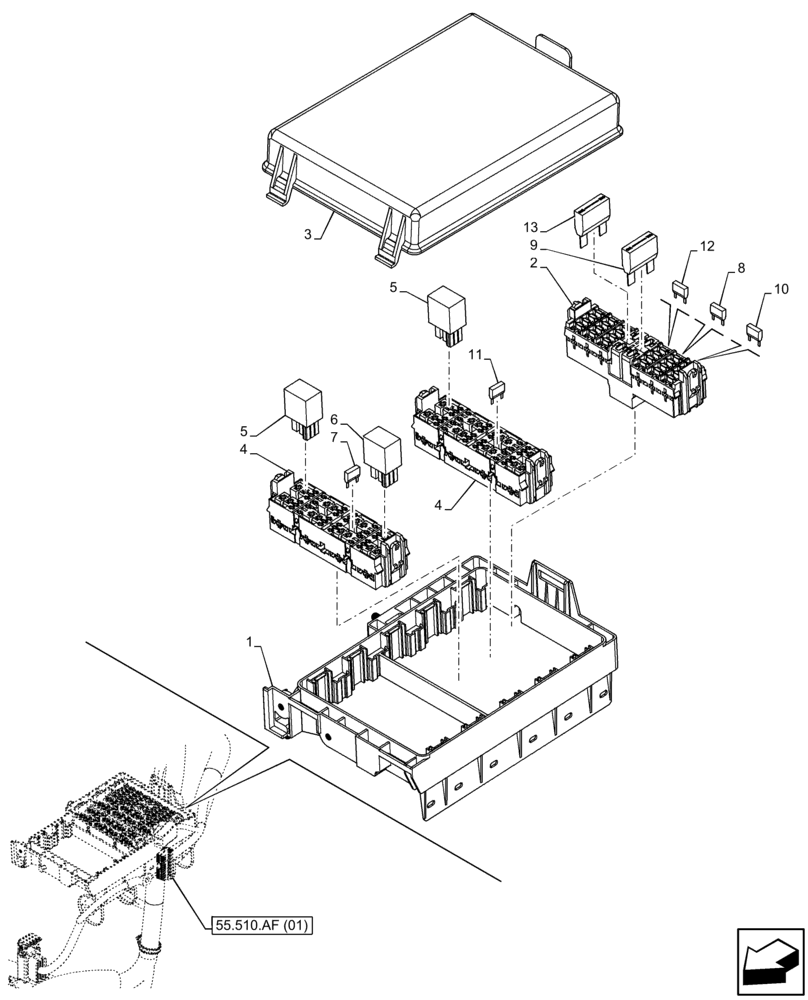

Запчасти Case IH FARMALL 120C (55.100.DO[01]) - RELAY, FUSE BOX, CAB (55) - ELECTRICAL SYSTEMS

1

87314764

COVER

1шт.

2

87314761

FUSE HOLDER

1шт.

3

87314759

COVER

1шт.

4

87314762

FUSE HOLDER

2шт.

5

84157157

RELAY,12V, 20A, Micro

Microrelay 12V/20A

14шт.

6

84157161

RELAY,12V, 20A

Microrelay 12V-10/20A

2шт.

7

84127704

FUSE,20A, Mini, Yellow

20A

4шт.

8

84127703

FUSE,15A, Mini, Blue

15A

9шт.

9

5190333

FUSE,40A, Maxi, Orange

40A

1шт.

Qty 2 when Var. 333756 or Var. 334193 or Var. 391756 is Equipped

1шт.

10

84153830

FUSE,5A, Mini, Beige

5A

10шт.

11

84152583

FUSE,7.5A, Mini, Brown

7.5A

1шт.

12

84127702

FUSE,10A, Mini, Red

10A

4шт.

13

82012388

FUSE,30A, Maxival, Green

30A

1шт.

Only when Var. 334888 or Var. 334991 or Var. 334192 or Var. 334194 is Equipped

1шт.
