Запчасти Case IH FARMALL 120C (55.100.BE[02]) - VAR - 330581, 390328, 743559, 744580, 744581, 744990 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS

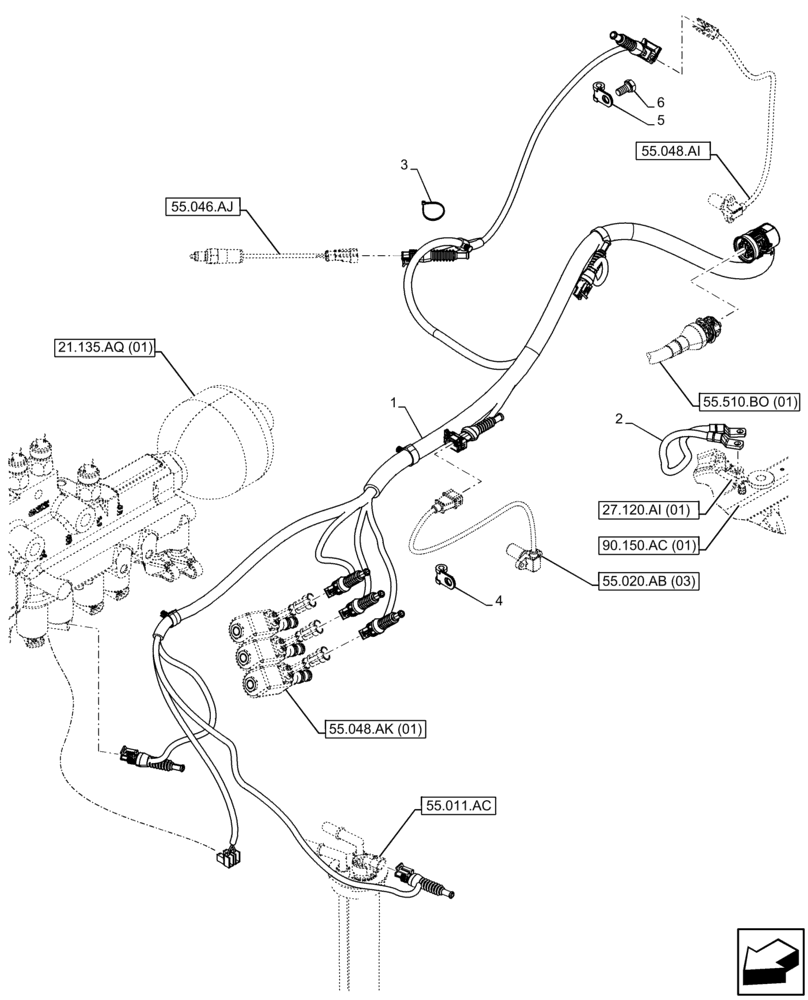

Схема запчастей Case IH FARMALL 120C - (55.100.BE[02]) - VAR - 330581, 390328, 743559, 744580, 744581, 744990 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS
55.046.aj
55.048.ak (01)
2
27.120.ai (01)
55.020.ab (03)
90.150.ac (01)
6
4
3
55.011.ac
1
55.048.ai
55.510.bo (01)
5
21.135.aq (01)

Артикул

Название

Примечание

Количество

1

47364082

WIRE HARNESS

1шт.

2

47369903

NEG BATTERY CABLE,400mm L

1шт.

3

14560187

COLLAR,199mm L

5шт.

4

10450790

RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 6
