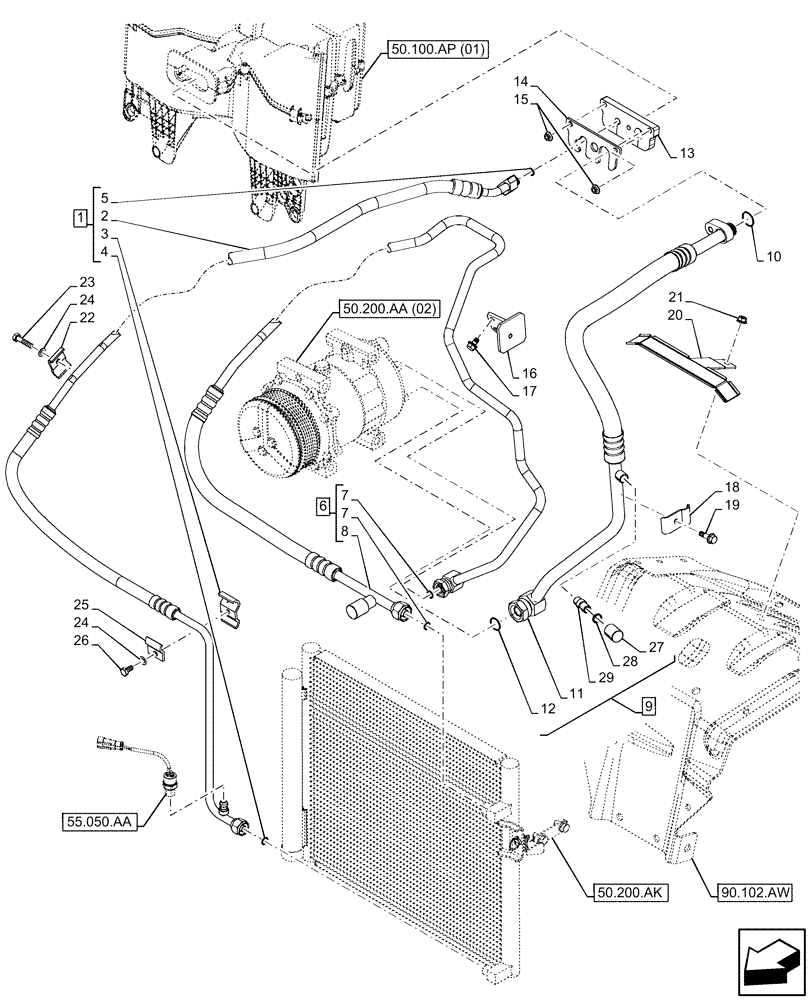

Запчасти Case IH FARMALL 120C (50.200.AB) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - AIR CONDITIONING, LINE (50) - CAB CLIMATE CONTROL

1

47483882

A/C HOSE

ASSY, from Condenser to Heater, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

84476870

BRACKET

1шт.

4

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

5

14450483

O-RING,1.8mm Thk x 6.7mm ID

1шт.

6

47743782

PIPE

ASSY, From Compressor to Condenser, Incl 7, 8

1шт.

7

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

1шт.

9

47743777

PIPE

ASSY, From Compressor to Heater, Incl 11, 12, 27 - 29

1шт.

10

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.

11

NSS

NOT SOLD SEPARAT

Hose, Incl in 9

1шт.

12

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

13

47443943

GASKET

1шт.

14

47443947

PLATE

Black

1шт.

15

13046011

NUT,Flange Hex, M5

M5 MTL R50 ZND

2шт.

16

47753477

SUPPORT

1шт.

17

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

2шт.

18

47753413

BRACKET

1шт.

19

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

20

47743770

BRACKET

1шт.

21

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

HEX M6

1шт.

22

84475360

BRACKET

1шт.

23

10902734

SCREW,Hex, M6 x 28mm, Cl 10.9, Full Thd

1шт.

24

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

25

84577651

BRACKET

1шт.

26

10902031

BOLT,Hex, M6 x 12mm, Cl 10.9

1шт.

27

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

1шт.

28

414079A1

VALVE

1шт.

29

414083A1

VALVE

1шт.
