(50.200.AA[01]) - VAR - 390018 - AIR CONDITIONING, COMPRESSOR, SUPPORT

Запчасти Case IH FARMALL 120C (50.200.AA[01]) - VAR - 390018 - AIR CONDITIONING, COMPRESSOR, SUPPORT (50) - CAB CLIMATE CONTROL

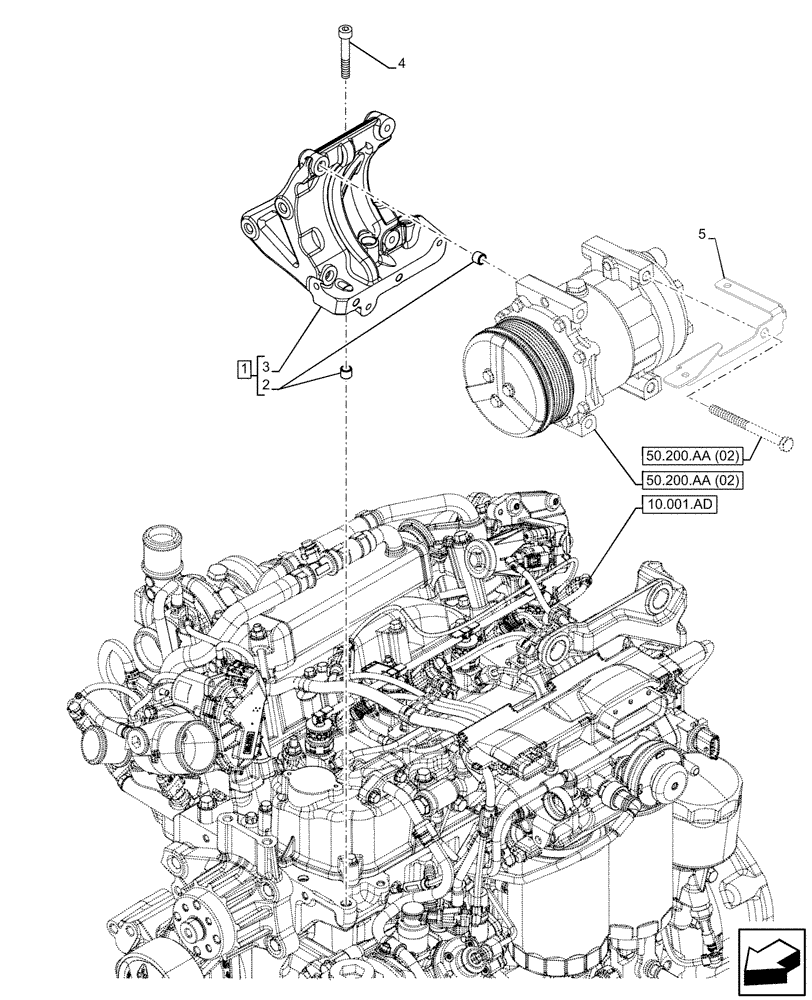

Схема запчастей Case IH FARMALL 120C - (50.200.AA[01]) - VAR - 390018 - AIR CONDITIONING, COMPRESSOR, SUPPORT (50) - CAB CLIMATE CONTROL
50.200.aa (02)
3
4
1
2
5
10.001.ad
50.200.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47563906

BRACKET

ASSY, Incl 2, 3

1шт.

2

87674545

BUSHING,8.5mm ID x 11.15mm OD x 9mm L

4шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

4

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

3шт.

5

47743995

BRACKET

1шт.

Выбрано товаров: 5
