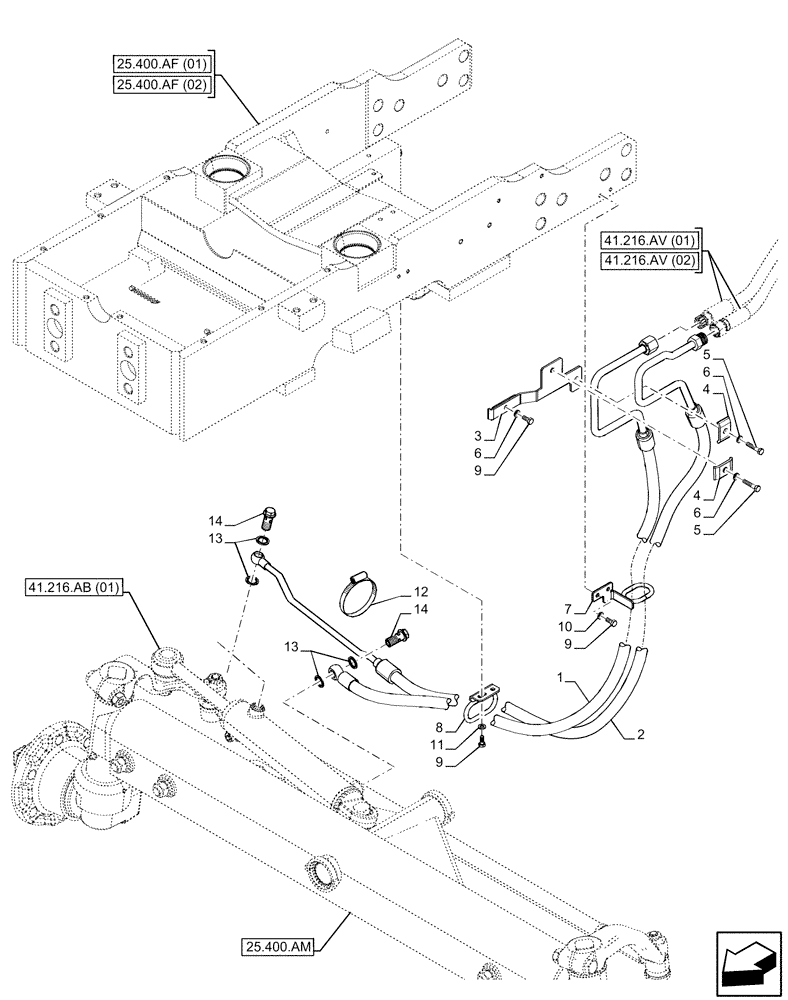

Запчасти Case IH FARMALL 120C (41.216.AV[06]) - VAR - 334216, 334218 - HYDRAULIC STEERING, LINE, STEERING CYLINDER, 2WD (41) - STEERING

1

47649175

PIPE

LH, Cylinder Steering

1шт.

2

47774855

PIPE

LH, Cylinder Steering

1шт.

3

47653075

BRACKET

1шт.

4

84519154

HOSE CLAMP

2шт.

5

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

7

47659434

BRACKET

1шт.

8

84484669

BRACKET

1шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

5шт.

10

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

11

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

12

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

13

87667804

SEAL,14.0mm ID x 22mm OD x 1.5mm Thk

4шт.

14

87736840

BOLT,M14 x 1.5 x 30mm

2шт.
