Запчасти Case IH FARMALL 120C (41.200.CA[02]) - VAR - 330581 - STEERING VALVE, POWERSHUTTLE, 2WD (41) - STEERING

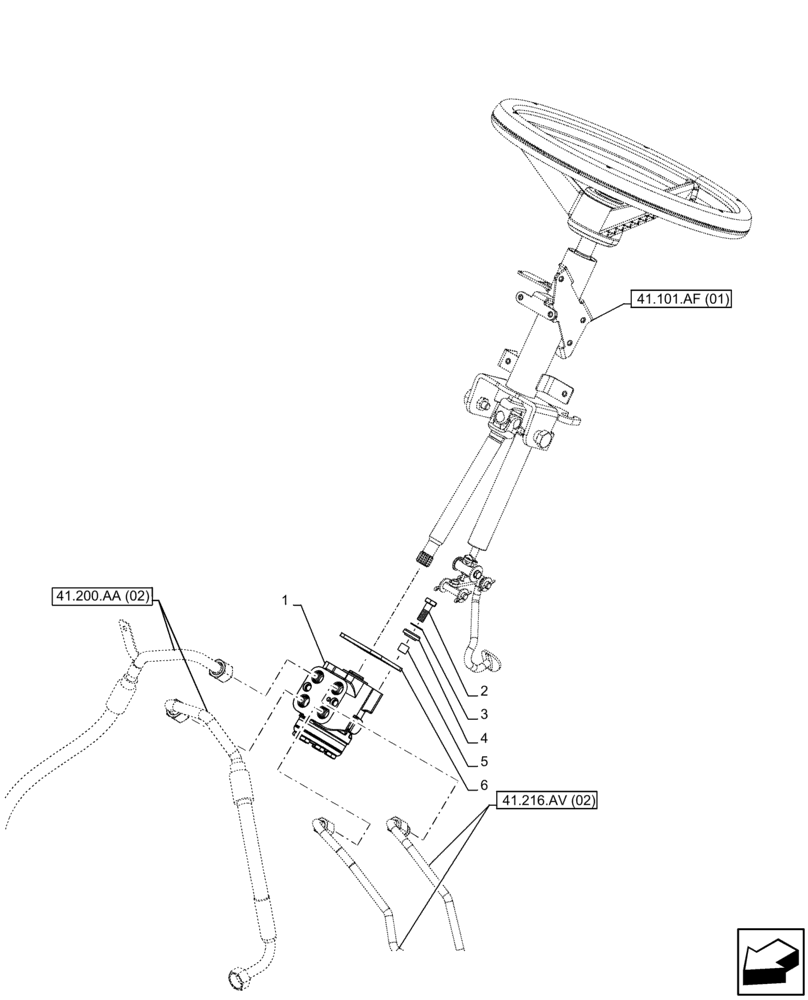

Схема запчастей Case IH FARMALL 120C - (41.200.CA[02]) - VAR - 330581 - STEERING VALVE, POWERSHUTTLE, 2WD (41) - STEERING
4
41.200.aa (02)
2
41.216.av (02)
6
5
41.101.af (01)
1
3

Артикул

Название

Примечание

Количество

1

5196525

HYDRAULIC STEERING,80CC, 170 Bar

1шт.

2

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

3

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

5

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

6

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

Выбрано товаров: 6
