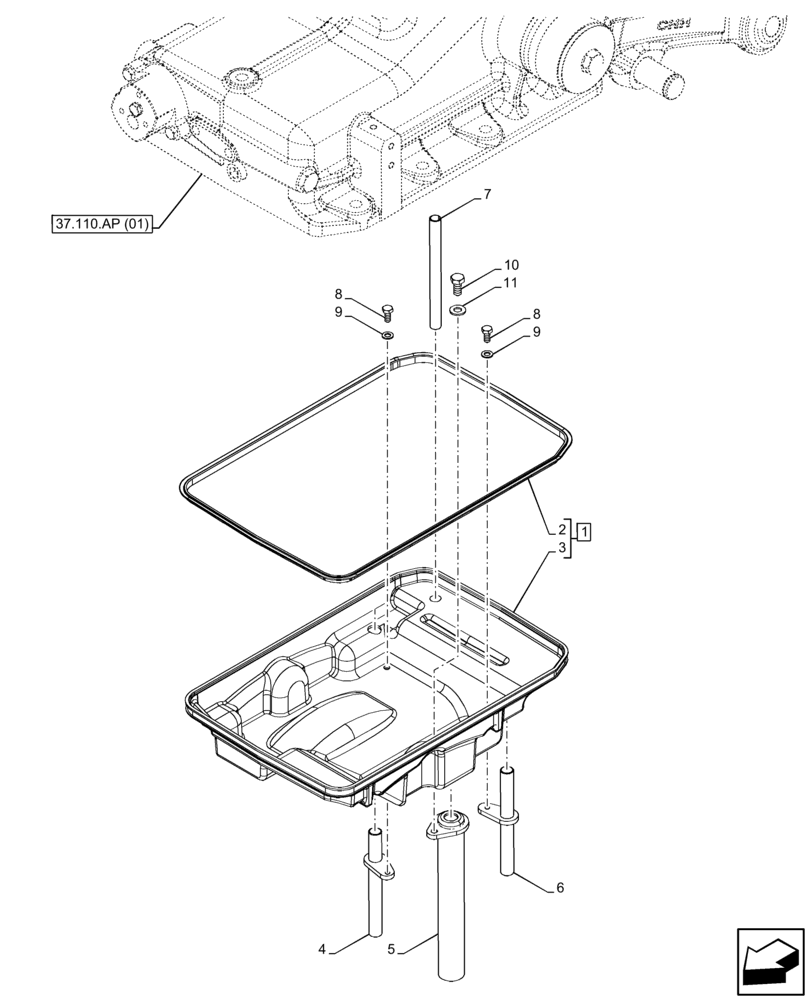

Запчасти Case IH FARMALL 120C (37.110.AP[02]) - VAR - 332785, 390831, 390832, 743597 - REAR, HYDRAULIC LIFT, OIL PAN (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47503977

PAN

ASSY, Incl 2, 3

1шт.

2

84281792

OIL SEAL

1шт.

3

47503980

PAN

1шт.

4

47503972

PIPE

1шт.

5

84232238

PIPE

1шт.

6

47503969

PIPE

1шт.

7

84232237

PIPE

1шт.

8

10902134

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
