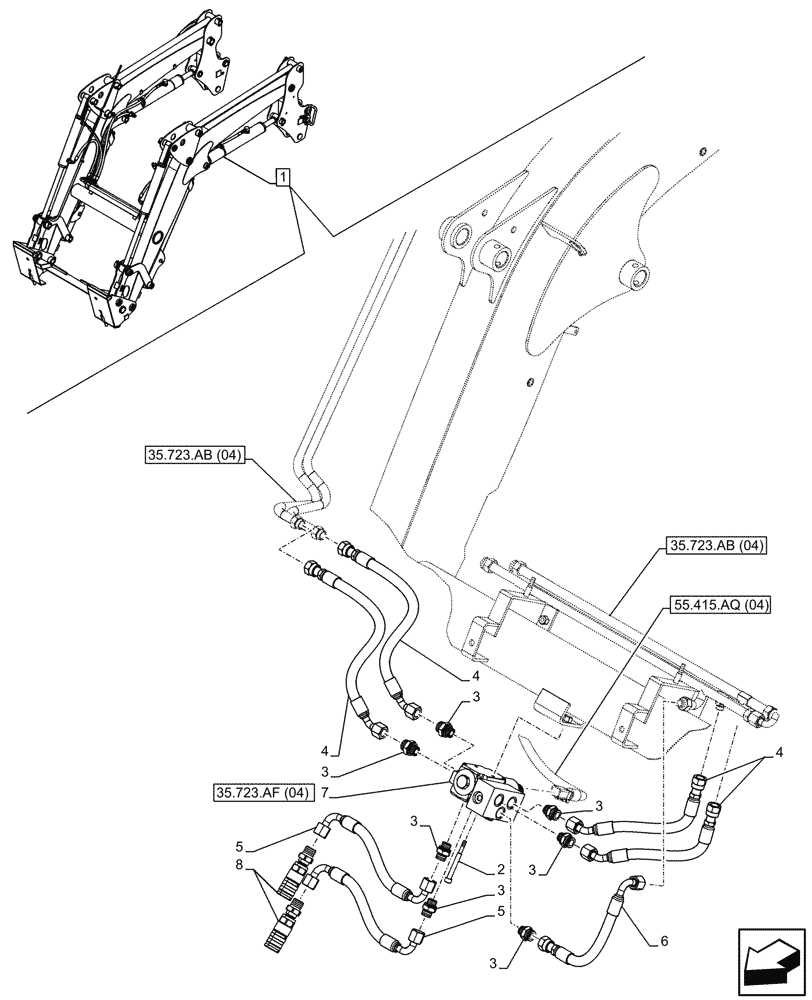

Запчасти Case IH FARMALL 120C (35.723.AF[03]) - VAR - 336734, 336736 - LOADER ARM, BUCKET CYLINDER, VALVE, LINES, W/DIVERTER, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

47649265

LOADER

ASSY, Incl 2 - 8

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (04), 55.415.AQ (04) 82.100.AA (04), 82.100.AF (07), 82.100.AF (08), 82.100.BG (04), 82.300.AB (04), 82.300.AX (05), 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

EU Tool Attach.

1шт.

1

47649271

LOADER

ASSY, Incl 2 - 8

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (04), 55.415.AQ (04) 82.100.AA (04), 82.100.AF (07), 82.100.AF (08), 82.100.BG (04), 82.300.AB (04), 82.300.AX (08), 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

SSL Tool Attach.

1шт.

2

14306021

HEX SOC SCREW,M6 x 50mm, Cl 8.8

2шт.

3

47612292

FITTING

7шт.

4

47614401

HOSE

Front Loader Diverter

4шт.

5

47612280

HOSE

to Quick Attach Coupler

2шт.

6

47657223

HYDRAULIC HOSE

2шт.

7

47657218

SOLENOID VALVE

Diverter, ASSY

1шт.

8

47612284

COUPLING, QUICK, FEM

2шт.
