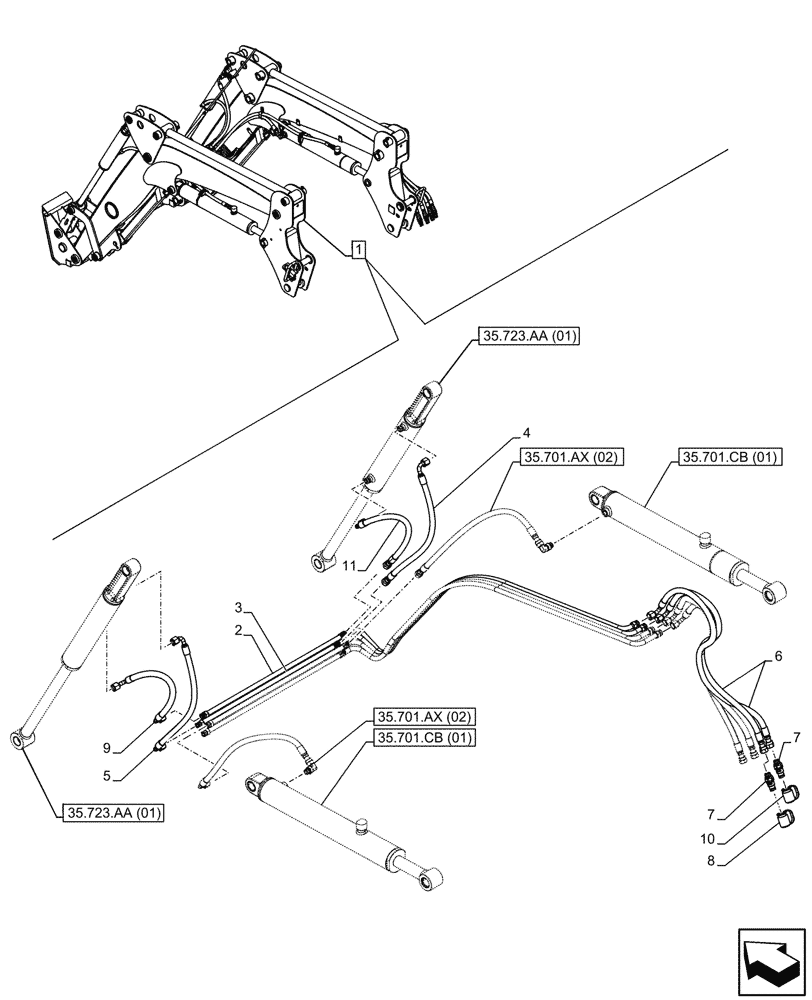

Запчасти Case IH FARMALL 120C (35.723.AB[01]) - VAR - 336734, 336736 - LOADER ARM, BUCKET CYLINDER LINES, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

84321725

LOADER

ASSY, Incl 2 - 11

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (01), 35.723.AA (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (02), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

SSL Tool Attach.

1шт.

1

47556496

LOADER

ASSY, Incl 2 - 11

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (01), 35.723.AA (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (03), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

EU Tool Attach.

1шт.

2

84406387

RIGID TUBE

Front Bucket Cylinder

1шт.

3

84406388

RIGID TUBE

Front Bucket Cylinder

1шт.

4

84406397

FLEXIBLE HOSE

Front Bucket Cylinder, RH

1шт.

5

84406398

FLEXIBLE HOSE

Front Bucket Cylinder, LH

1шт.

6

84406192

FLEXIBLE HOSE,1250mm L

Front Loader , 1250mm

2шт.

7

84406394

FITTING

2шт.

8

84406401

PLASTIC PLUG

Red

1шт.

9

47406824

FLEXIBLE HOSE

Front Bucket Cylinder, LH

1шт.

10

84406402

PLASTIC PLUG

Blue

1шт.

11

47406821

FLEXIBLE HOSE

Front Bucket Cylinder, RH

1шт.
