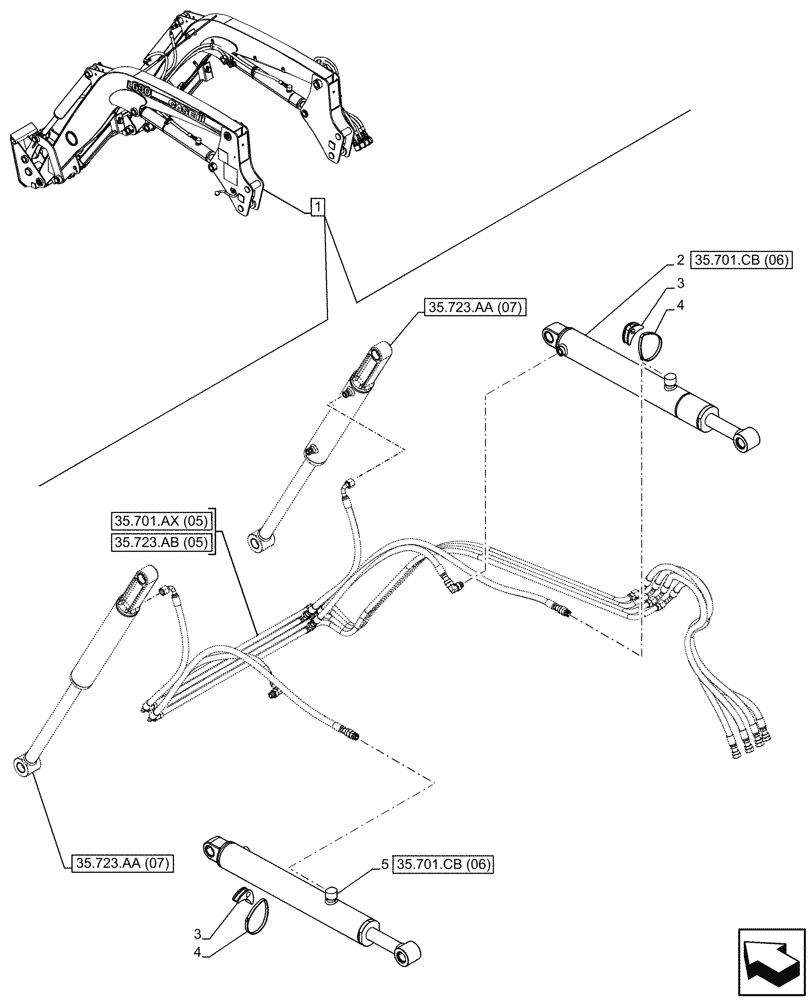

Запчасти Case IH FARMALL 120C (35.701.CB[07]) - VAR - 336740, 336742 - LOADER ARM, BOOM CYLINDER, MOUNTING, W/O SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

47589346

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (06), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

SSL Tool Attach

1шт.

1

47562346

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (07), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

EU Tool Attach

1шт.

2

84575190

LIFT CYLINDER

RH, ASSY

1шт.

3

85805567

BLOCK

2шт.

4

84406396

FIXING STRIP

2шт.

5

84575192

LIFT CYLINDER

LH, ASSY

1шт.
