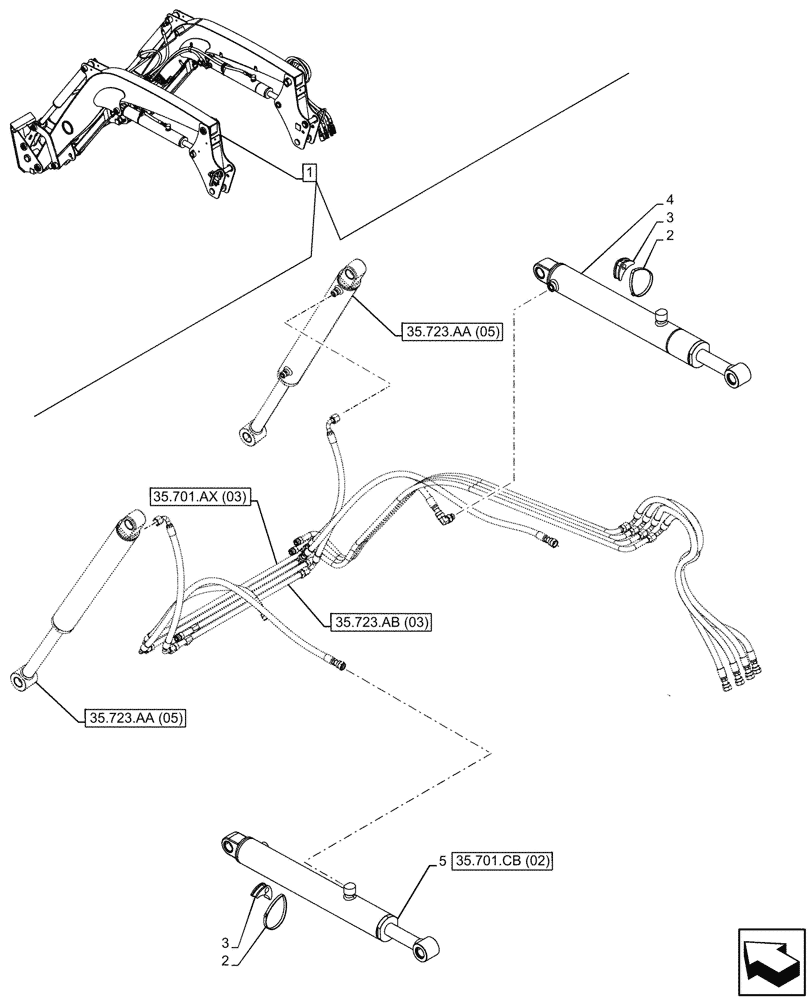

Запчасти Case IH FARMALL 120C (35.701.CB[04]) - VAR - 336732, 336914 - BOOM CYLINDER, MOUNTING, W/DIVERTER, W/O SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

47592515

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (01), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47592511

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (04), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

84406396

FIXING STRIP

2шт.

3

85805567

BLOCK

2шт.

4

84406290

LIFT CYLINDER

RH

1шт.

5

84406289

LIFT CYLINDER

LH

1шт.
