Запчасти Case IH FARMALL 120C (33.202.AJ[03]) - VAR - 333411 - BRAKE CYLINDER, HEAVY DUTY, 2WD, 4WD (33) - BRAKES & CONTROLS

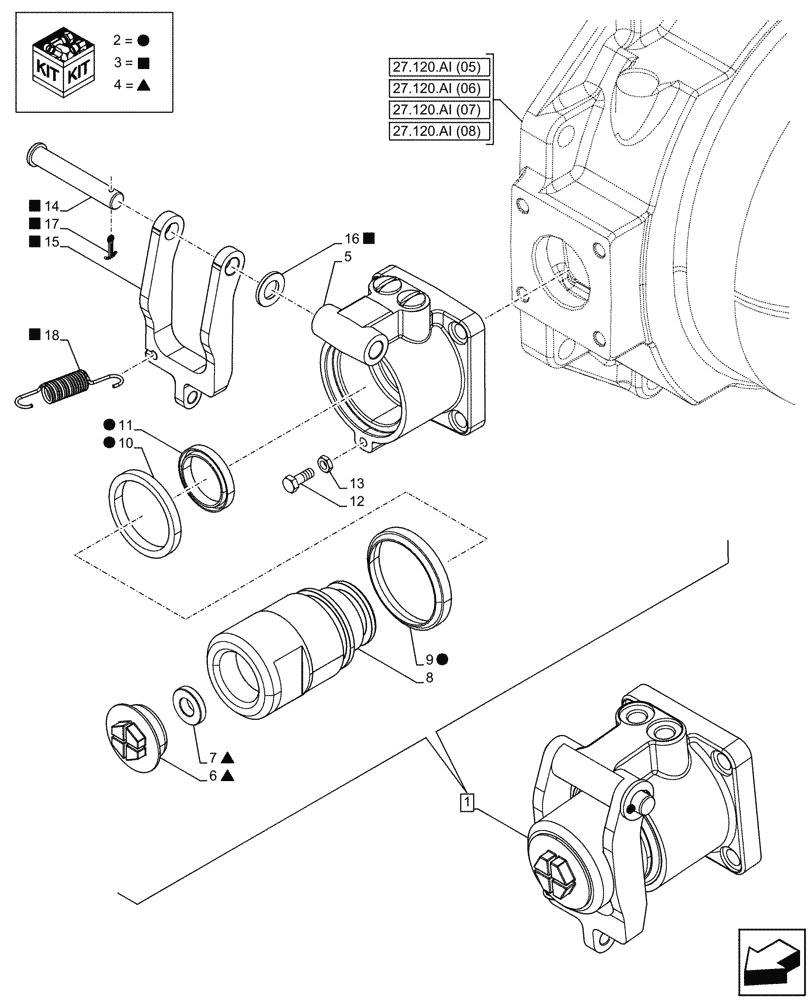

Схема запчастей Case IH FARMALL 120C - (33.202.AJ[03]) - VAR - 333411 - BRAKE CYLINDER, HEAVY DUTY, 2WD, 4WD (33) - BRAKES & CONTROLS
27.120.ai (05)
5
3
10
1
18
13
4
4
9
12
3
3
3
3
17
3
16
2
8
14
6
15
2
4
2
2
11
7
27.120.ai (07)
27.120.ai (08)
27.120.ai (06)

Артикул

Название

Примечание

Количество

1

84392195

HYDRAULIC CYLINDER,10mm Stroke

ASSY, Incl 2 - 18

1шт.

2

84392603

SEAL KIT

KIT, Incl 9 -11

1шт.

3

84392605

SERVICE KIT

KIT, Incl 14 -18

1шт.

4

84392604

SERVICE KIT

KIT, Incl 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Lock Washer, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Yoke, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

Выбрано товаров: 18
