Запчасти Case IH FARMALL 120C (31.114.AF[01]) - VAR - 743566 - PTO 540-540E RPM, OUTPUT SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF

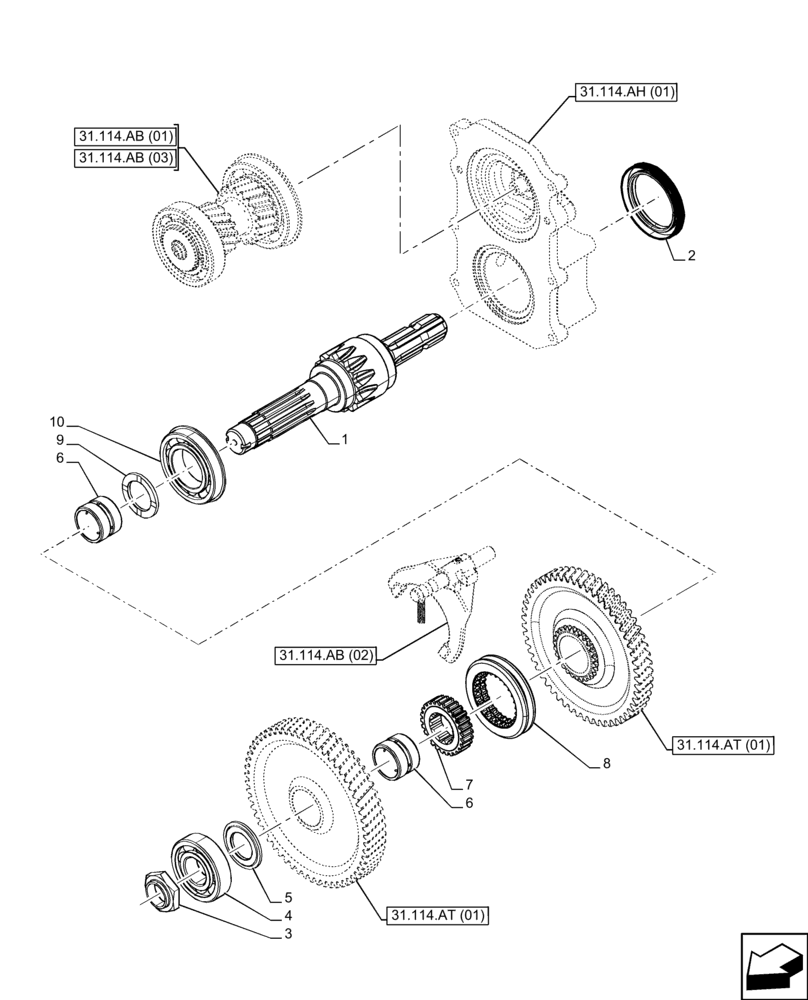

Схема запчастей Case IH FARMALL 120C - (31.114.AF[01]) - VAR - 743566 - PTO 540-540E RPM, OUTPUT SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF
1
7
2
31.114.at (01)
31.114.ab (03)
8
31.114.at (01)
4
5
31.114.ab (02)
6
3
31.114.ah (01)
31.114.ab (01)
10
9
6

Артикул

Название

Примечание

Количество

1

47626741

SHAFT,355.5mm L

335.5mm

1шт.

2

84357623

SEAL,67.9mm ID x 95mm OD x 12mm Thk

70 x 95 12mm

1шт.

3

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

4

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21mm

1шт.

5

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

6

84328238

BUSHING,38mm ID x 45.95mm OD x 33mm L

2шт.

7

5130550

PINION,28T / 12T

1шт.

8

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

9

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

10

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

Выбрано товаров: 10
