(31.114.AB[03]) - VAR - 743566 - PTO 540 RPM, DRIVEN SHAFT, SHUTTLE

Запчасти Case IH FARMALL 120C (31.114.AB[03]) - VAR - 743566 - PTO 540 RPM, DRIVEN SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF

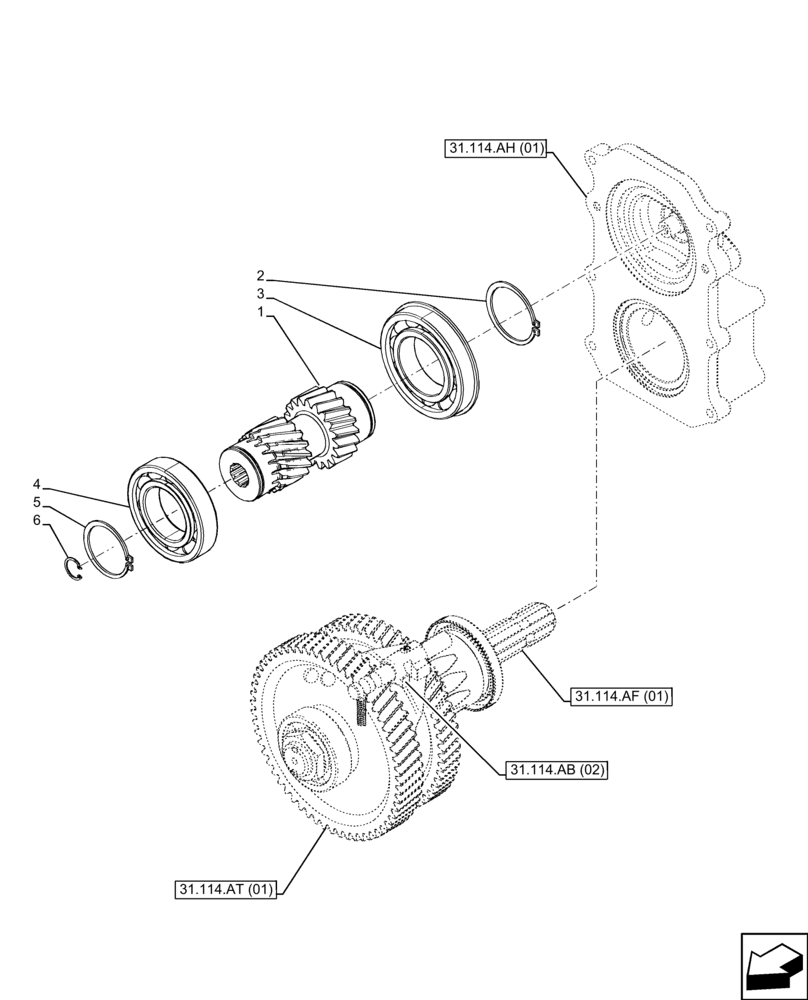

Схема запчастей Case IH FARMALL 120C - (31.114.AB[03]) - VAR - 743566 - PTO 540 RPM, DRIVEN SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF
6
31.114.ah (01)
5
31.114.at (01)
31.114.ab (02)
1
3
2
31.114.af (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47534427

SHAFT

PTO, 540/540E, 152mm

1шт.

2

11069876

SNAP RING,M60, Ext

1шт.

3

84355150

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22mm

1шт.

4

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

5

11069576

SNAP RING,M55, Ext

1шт.

6

84078050

SNAP RING,M22, Int

1шт.
