Запчасти Case IH FARMALL 120C (31.104.AR[02]) - VAR - 330581, 390328, 743559 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

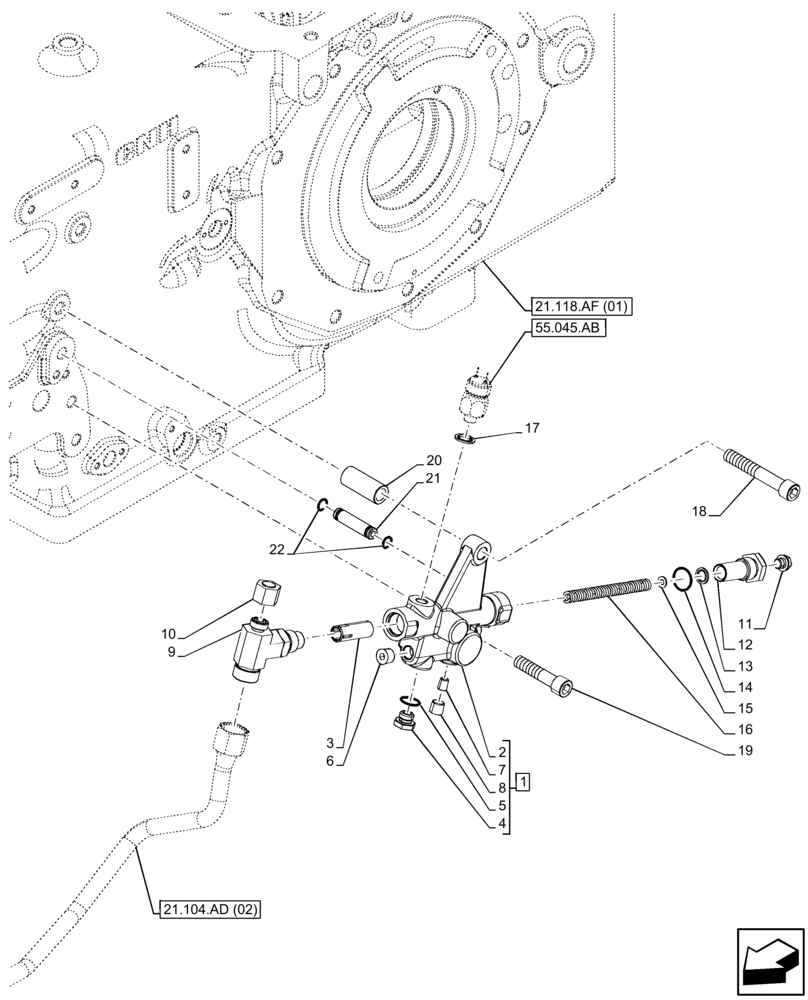

Схема запчастей Case IH FARMALL 120C - (31.104.AR[02]) - VAR - 330581, 390328, 743559 - PTO, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF
21
22
12
21.104.ad (02)
17
20
16
19
55.045.ab
18
10
14
15
13
7
3
11
6
2
1
8
4
21.118.af (01)
5
9

Артикул

Название

Примечание

Количество

1

84416342

VALVE BODY

PTO Control Valve, ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

16 x 47

1шт.

4

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

5

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

6

10269501

PLUG,M14 x 1.5

M14 x 1.5 x 11

2шт.

7

14326101

PLUG,M8 x 11

M8 x 11

1шт.

8

10269404

PLUG,M12 x 1.5

M12 x 1.5 x 11

1шт.

9

84380290

FITTING

1шт.

10

9625546

CAP,11/16" - 16 ORFS

1шт.

11

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

12

84136105

PLUG,M22 x 1.5

M22 x 1.5

1шт.

13

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

16

84407183

SPRING,11.5mm OD x 120mm L

W36,5 L120mm

1шт.

17

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

18

14332121

HEX SOC SCREW,M12 x 1.25 x 80mm, Cl 8.8

1шт.

19

14331621

HEX SOC SCREW,M12 x 1.25 x 55mm, Cl 8.8, Full Thd

1шт.

20

84366578

SPACER,13mm ID x 20mm OD x 47mm L

20 x 47

1шт.

21

84416344

PIPE,12mm OD x 50mm L

12 x 50

1шт.

22

14452980

O-RING,9.25mm ID x 1.78" Width

2шт.

Выбрано товаров: 22
