Запчасти Case IH FARMALL 120C (31.104.AN[01]) - PTO CLUTCH, OIL LINE, CAB (31) - IMPLEMENT POWER TAKE OFF

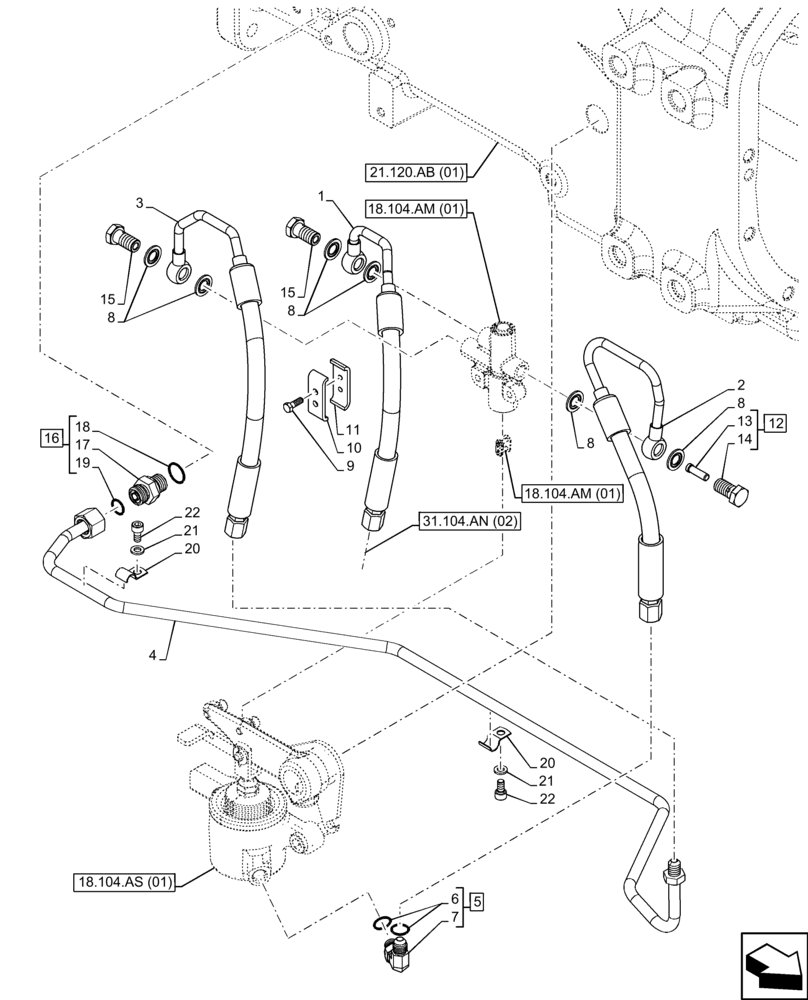

Схема запчастей Case IH FARMALL 120C - (31.104.AN[01]) - PTO CLUTCH, OIL LINE, CAB (31) - IMPLEMENT POWER TAKE OFF
18.104.as (01)
19
8
11
18.104.am (01)
13
8
20
15
2
3
7
10
18.104.am (01)
22
17
15
4
9
22
20
12
1
8
8
21.120.ab (01)
6
21
18
14
16
5
31.104.an (02)
21

Артикул

Название

Примечание

Количество

1

5183772

FLEXIBLE HOSE,12.2mm ID x 242mm L

Pressure, PTO Control

1шт.

2

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

Pressure, Cylinder PTO Control

1шт.

3

5183775

FLEXIBLE HOSE,12.2mm ID x 252mm L

Pressure, Discharge PTO Control

1шт.

4

84363884

PIPE

PTO Hydraulic Control

1шт.

5

87616449

HYD CONNECTOR

Elbow ASSY, Incl 6, 7

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

8

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

6шт.

9

10977811

SCREW,M5 x 15mm L

M5 x 15mm

2шт.

10

5184304

BRACKET

1шт.

11

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

1шт.

12

84196125

BANJO BOLT,Hex, M12 x 1.5

ASSY, Incl 13, 14

1шт.

13

47126655

FILTER STRAINER

1шт.

14

84196124

HYD CONNECTOR,M12 x 1.5 x 29mm L

1шт.

15

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

16

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

10113204

RETAINER

2шт.

21

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

22

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 22
