(25.400.AD[02]) - VAR - 330581 - FRONT AXLE, EXTENSION, 2WD, HEAVY DUTY

Запчасти Case IH FARMALL 120C (25.400.AD[02]) - VAR - 330581 - FRONT AXLE, EXTENSION, 2WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

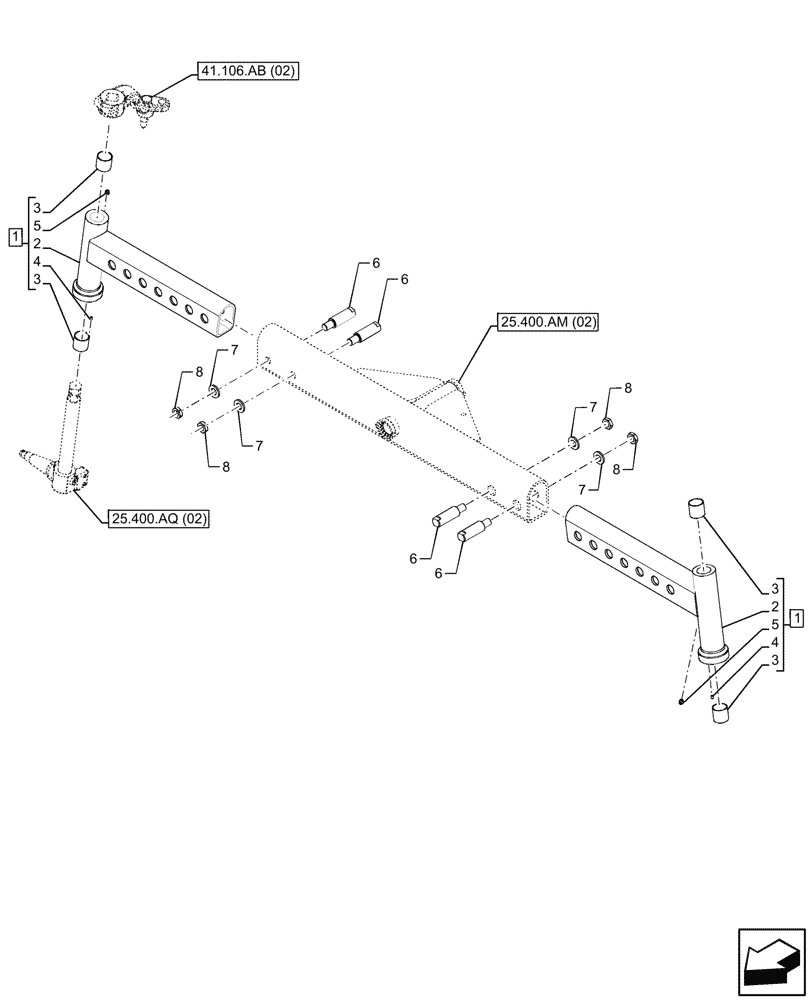

Схема запчастей Case IH FARMALL 120C - (25.400.AD[02]) - VAR - 330581 - FRONT AXLE, EXTENSION, 2WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM
7
41.106.ab (02)
4
25.400.am (02)
5
8
3
8
7
3
7
3
8
7
4
3
6
25.400.aq (02)
6
5
2
2
1
6
8
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5169672

EXTENSION

ASSY, Incl 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

End, Incl in 1

1шт.

3

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

2шт.

4

10839510

DOWEL,M6 x 9

1шт.

5

13407214

LUBE NIPPLE,M10 x 1

M10 X 1 R50

1шт.

6

5168833

LOCK PIN,30mm OD x 110mm L

4шт.

7

11191779

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

8

10726721

THIN NUT,Thin, M20 x 1.5, Cl 05

2шт.
