Запчасти Case IH FARMALL 120C (23.101.AF[02]) - VAR - 390328, 743559 - GEAR, W/ MECHANICAL ENGAGEMENT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

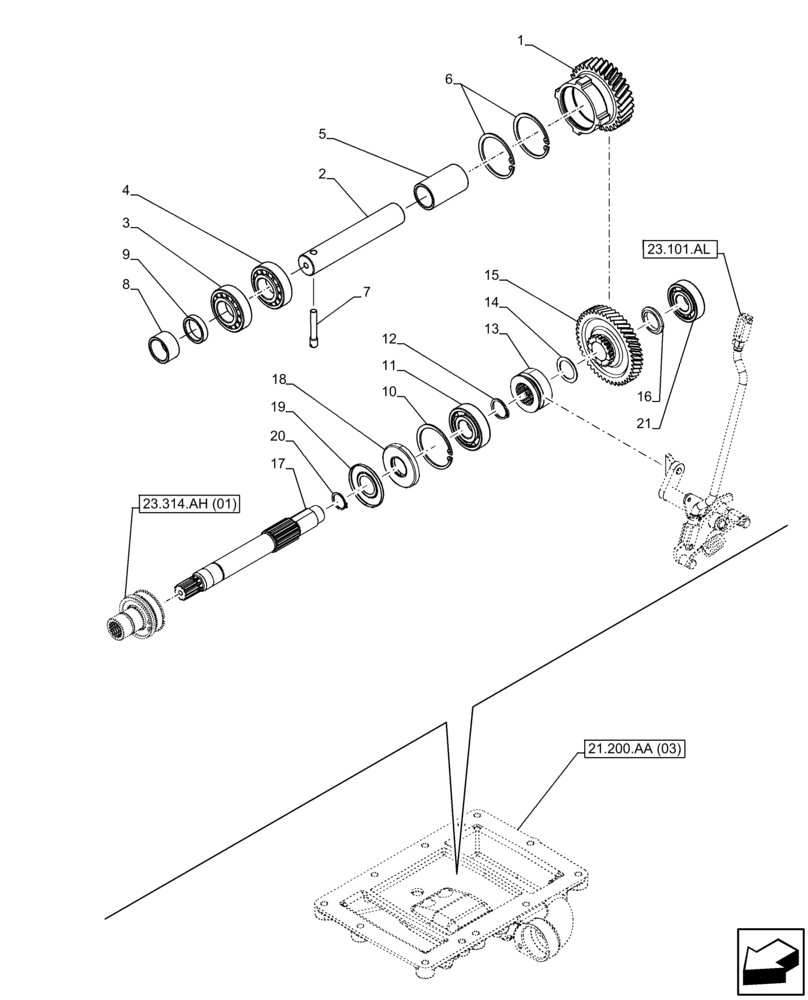

Схема запчастей Case IH FARMALL 120C - (23.101.AF[02]) - VAR - 390328, 743559 - GEAR, W/ MECHANICAL ENGAGEMENT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM
4
11
23.101.al
23.314.ah (01)
8
15
12
18
1
16
2
9
5
21
19
7
3
6
17
13
20
14
21.200.aa (03)
10

Артикул

Название

Примечание

Количество

1

84247777

GEAR,31T

1шт.

2

84247783

IDLE SHAFT

1шт.

3

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

1шт.

4

84339462

NEEDLE BEARING,30mm ID x 62mm OD x 16mm W

Bearing Roller Cylindrical, 30 x 62 x 16

1шт.

5

84341932

SPACER,30mm ID x 38mm OD x 63.95mm L

1шт.

6

11061076

SNAP RING,M62, Int

Int

2шт.

7

84337006

PIN,7.9mm OD x 57mm L

1шт.

8

84363422

SPACER,30.2mm ID x 38mm OD x 20mm L

1шт.

9

84391601

SPACER,30mm ID x 38mm OD x 6.5mm L

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

Bearing Ball, D35 x 80 x 21

1шт.

12

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

13

5123388

SLEEVE,37mm ID x 70mm OD x 32mm L

2шт.

14

87759259

THRUST WASHER,35.2mm ID x 48mm OD x 1.5mm Thk

1шт.

15

84247788

GEAR,45T

1шт.

16

87554474

SPACER,35mm ID x 50mm OD x 8mm L

1шт.

17

47406083

SHAFT

1шт.

18

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

19

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

1шт.

20

11067776

SNAP RING,M29, Ext

1шт.

21

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

Выбрано товаров: 21
