Запчасти Case IH FARMALL 120C (21.154.AO[04]) - VAR - 334176 - TRANSMISSION, POWERSHUTTLE, GEARS & SHAFT (12X12 CREEPER) (21) - TRANSMISSION

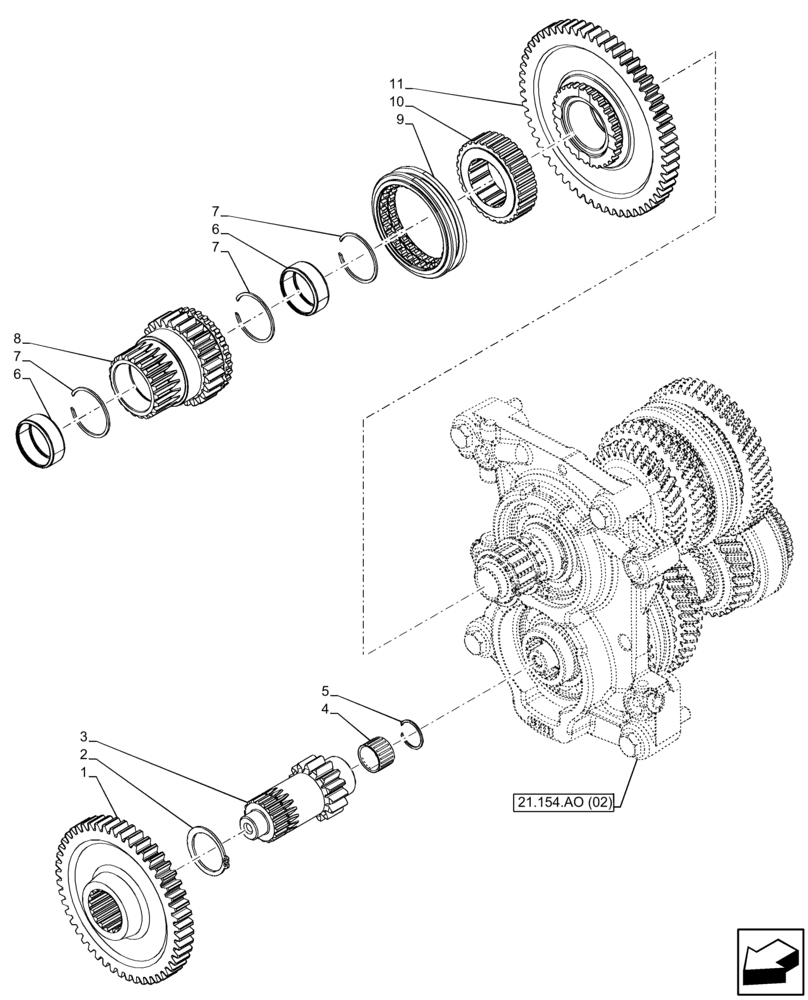

Схема запчастей Case IH FARMALL 120C - (21.154.AO[04]) - VAR - 334176 - TRANSMISSION, POWERSHUTTLE, GEARS & SHAFT (12X12 CREEPER) (21) - TRANSMISSION
9
6
2
3
8
7
6
10
21.154.ao (02)
11
7
5
4
7
1

Артикул

Название

Примечание

Количество

1

84247707

GEAR,49T

Driven, Creeper

1шт.

2

370006

SNAP RING,M40, Ext

External

1шт.

3

47372924

SHAFT

Driven, Creeper

1шт.

4

84339454

NEEDLE BEARING,22mm ID x 26mm OD x 17mm W

1шт.

5

84339475

LOCKING RING,26mm

1шт.

6

84330698

BEARING,Needle, 40mm ID x 42mm OD x 16.8mm W

2шт.

7

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

3шт.

8

47372921

GEAR,25T

Drive, Creeper

1шт.

9

87370421

SLEEVE,Z30

Z30

1шт.

10

84327883

GEAR,14T Internal / 30T External

1шт.

11

47365388

GEAR,57T

Coupler, Creeper

1шт.

Выбрано товаров: 11
