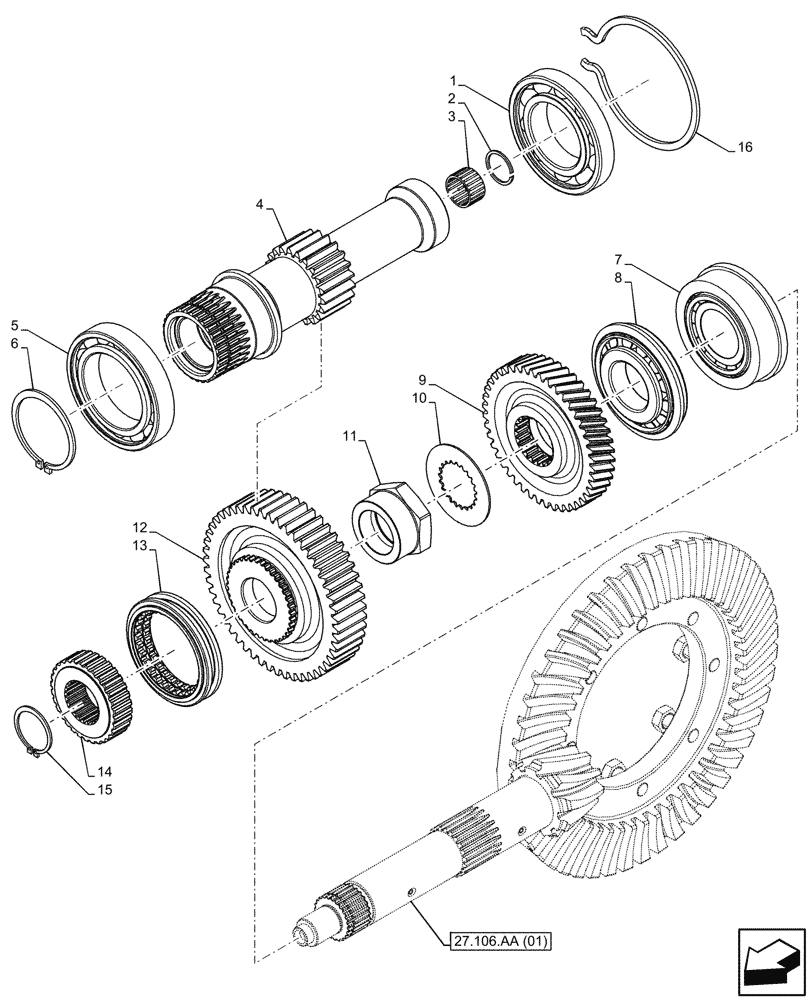

Запчасти Case IH FARMALL 120C (21.148.AQ[01]) - TRANSMISSION, REAR, DRIVE SHAFT, GEAR, SHUTTLE, 4WD (21) - TRANSMISSION

1

84370269

BALL BEARING,60mm ID x 110mm OD x 22mm W

60mm ID x 110mm OD x 22mm L

1шт.

2

84389655

LOCKING RING,30mm ID

30mm ID

1шт.

3

84389037

NEEDLE BEARING,25mm ID x 30mm OD x 17mm W

25mm ID x 30mm OD x 17 mm L

1шт.

4

47612770

SHAFT

277mm Range

1шт.

5

84164062

BALL BEARING,70mm ID x 110mm OD x 20mm W

70mm ID x 110mm OD x 20mm L

1шт.

6

11070276

SNAP RING,M68, Ext

1шт.

7

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

45mm ID x 100mm OD x 38.25mm L

1шт.

8

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

45mm ID x 100mm OD x 20.75mm L

1шт.

9

84410358

GEAR,Z44

Gear, Z44

1шт.

10

84273497

WASHER, LOCK,45mm ID x 75mm OD x 1.5mm Thk

LOCK 45mm ID

1шт.

11

84330745

FERRULE,M45 x 1.5

58mm OD x 35.5mm L

1шт.

12

47383196

GEAR,Z51

Z51 Driven, Range 12 Speed

1шт.

13

87370421

SLEEVE,Z30

Z30

1шт.

14

84156493

GEAR,Z30

Z30 Range Gear

1шт.

15

11068876

SNAP RING,M40, Ext

1шт.

16

84355307

SNAP RING,105.6mm ID

105.6mm ID

1шт.
