Запчасти Case IH FARMALL 120C (21.140.AE[05]) - VAR - 336842 - TRANSMISSION, SHUTTLE, SHAFT & GEAR (24X24 ECO SPEED) (21) - TRANSMISSION

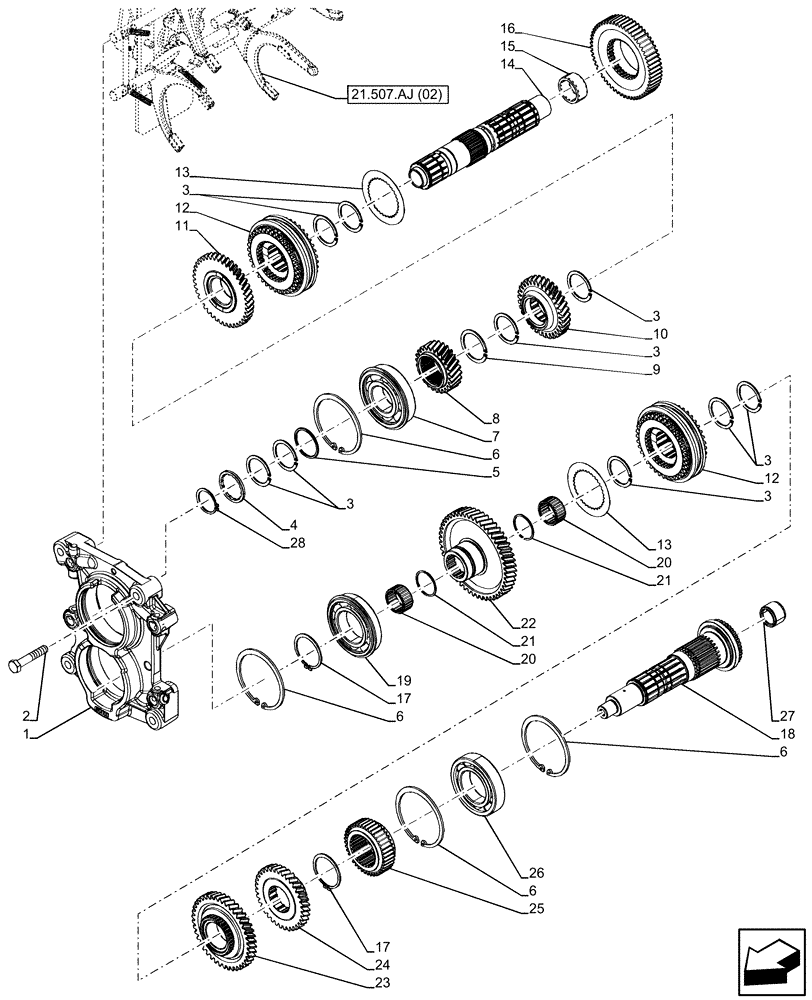

Схема запчастей Case IH FARMALL 120C - (21.140.AE[05]) - VAR - 336842 - TRANSMISSION, SHUTTLE, SHAFT & GEAR (24X24 ECO SPEED) (21) - TRANSMISSION
21.507.aj (02)
1
23
10
21
13
4
16
6
22
3
6
26
15
20
13
25
8
20
2
12
6
18
3
3
17
6
9
5
3
17
3
27
24
19
14
12
28
7
21
3
11

Артикул

Название

Примечание

Количество

1

47379370

WALL

1шт.

2

15541124

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

3

11386776

SNAP RING,M45, Ext

9шт.

4

84339703

WASHER,42mm ID x 53.5mm OD x 4mm Thk

1шт.

5

84342919

SPACER,45.1mm ID x 52mm OD x 2.5mm L

1шт.

6

11062976

SNAP RING,Int, M100 x 3

4шт.

7

47384223

BALL BEARING,45mm ID x 100mm OD x 25mm W

45 x 100 x 25mm

1шт.

8

84247723

GEAR,25T

Drive 1 Speed

1шт.

9

84347162

LOCKING RING

1шт.

10

47683708

GEAR,32T

Drive 2 Speed

1шт.

11

47383210

GEAR,40T

Drive 3 Speed

1шт.

12

84339938

SYNCHRONIZER

2шт.

13

84471203

WASHER,64mm ID x 93mm OD x 0.5mm Thk

2шт.

13

84471199

WASHER,64mm ID x 93mm OD x 0.75mm Thk

64mm ID x 93mm OD x 0.75mm Thk

1шт.

13

84471193

WASHER,64mm ID x 93mm OD x 1mm Thk

64mm ID x 93mm OD x 1mm Thk

1шт.

13

84471186

WASHER,64mm ID x 93mm OD x 1.25mm Thk

64mm ID x 93mm OD x 1.25mm Thk

1шт.

13

84471181

WASHER,64mm ID x 93mm OD x 1.5mm Thk

64mm ID x 93mm OD x 1.5mm Thk

1шт.

13

84471177

WASHER,64mm ID x 93mm OD x 1.75mm Thk

64mm ID x 93mm OD x 1.75mm Thk

1шт.

13

84471174

WASHER,64mm ID x 93mm OD x 2mm Thk

64mm ID x 93mm OD x 2mm Thk

1шт.

13

84471162

WASHER,64mm ID x 93mm OD x 2.25mm Thk

64mm ID x 93mm OD x 2.25mm Thk

1шт.

14

47686105

SHAFT

1шт.

15

84273452

ROLLER BEARING,35mm ID x 45mm OD x 19.8mm W

1шт.

16

47708728

GEAR,47T

Drive 4 Speed

1шт.

17

11069576

SNAP RING,M55, Ext

2шт.

18

47367088

SHAFT

1шт.

19

47384247

BALL BEARING,55mm ID x 100mm OD x 21mm W

55 x 100 x 21mm

1шт.

20

5119556

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 20mm W

2шт.

21

5124473

SNAP RING,1.5mm Thk, Int

2шт.

22

47365379

GEAR,49T

Driven 1 Speed

1шт.

23

47383209

GEAR,41T

Driven 2 Speed

1шт.

24

47383212

GEAR,35T

Driven 3 Speed

1шт.

25

47708727

GEAR,27T

Driven 4 Speed

1шт.

26

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

27

84516644

ROLLER BEARING,Needle, 25mm ID x 35mm OD x 24.8mm W

D25 x 35 x 25mm

1шт.

28

11068876

SNAP RING,M40, Ext

1шт.

Выбрано товаров: 35
