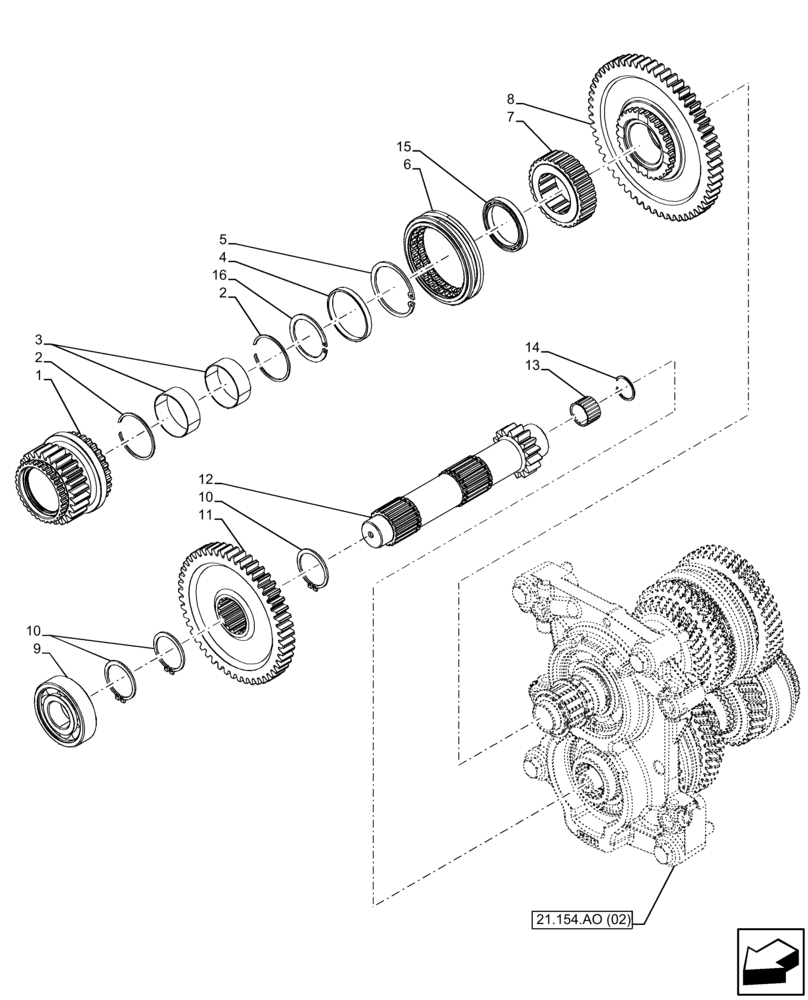

Запчасти Case IH FARMALL 120C (21.140.AE[04]) - VAR - 744576 - TRANSMISSION, SHUTTLE, SHAFT & GEAR (12X12 CREEPER) (21) - TRANSMISSION

1

47684710

GEAR,25T

1шт.

2

5149529

CIRCLIP

2шт.

3

5161805

NEEDLE BEARING,45mm ID x 50mm OD x 17mm W

2шт.

4

47684709

SPACER,54mm ID x 58mm OD x 6mm L

1шт.

5

84163829

RING,58mm, PHC

Int, 58mm

1шт.

6

87370421

SLEEVE,Z30

1шт.

7

84327883

GEAR,14T Internal / 30T External

1шт.

8

47365388

GEAR,57T

1шт.

9

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

10

11068876

SNAP RING,M40, Ext

3шт.

11

84247707

GEAR,49T

1шт.

12

47365390

SHAFT

1шт.

13

84339454

NEEDLE BEARING,22mm ID x 26mm OD x 17mm W

22 x 26 x 17mm

1шт.

14

84339475

LOCKING RING,26mm

1шт.

15

47595845

BEARING ASSY,Ball, 45mm ID x 58mm OD x 7mm W

1шт.

16

11386776

SNAP RING,M45, Ext

Ext, 45mm ID

1шт.
