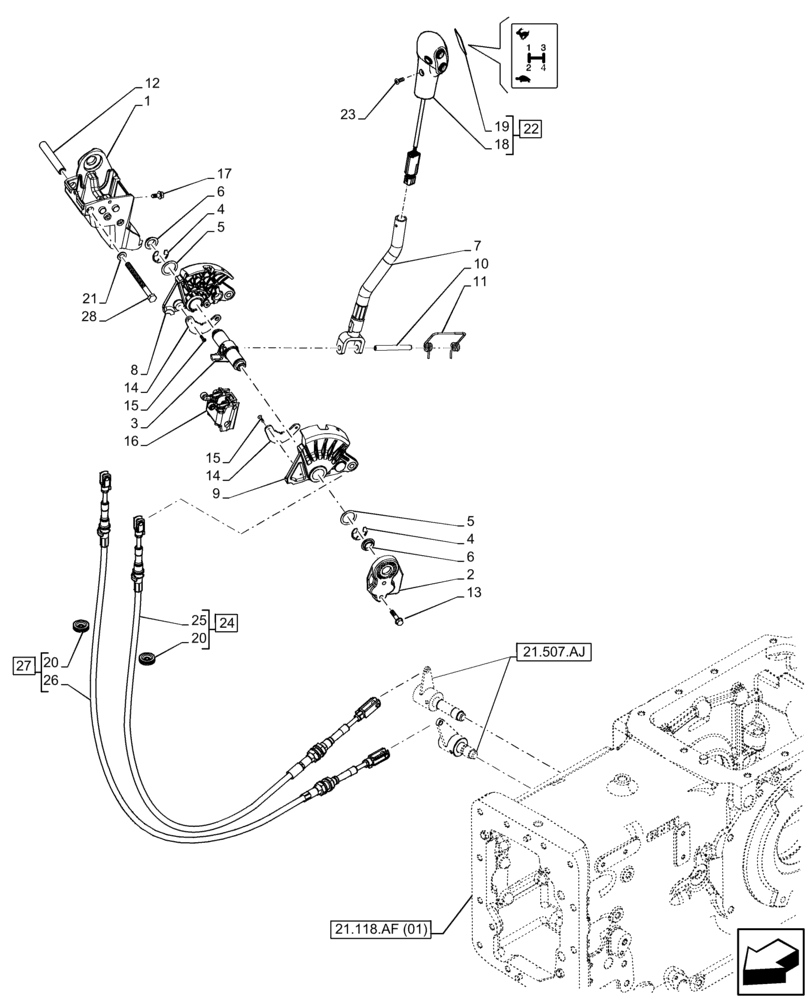

Запчасти Case IH FARMALL 120C (21.134.AI[01]) - VAR - 330276, 334176 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, GEARSHIFT (12X12) (12X12 CREEPER) (21) - TRANSMISSION

1

84583575

SUPPORT

Black

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

7

84278260

LEVER

1шт.

8

84583576

FERRULE

LH, Black

1шт.

9

84583577

FERRULE

RH, Black

1шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

84583496

PLATE

2шт.

15

15915901

SCREW,Flat Hd, M3.5 x 1.3 x 16mm

4шт.

16

84583500

PAN

1шт.

17

44995066

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

1шт.

18

NSS

NOT SOLD SEPARAT

Knob, Incl in 22

1шт.

19

84381847

COVER

Gearshift Control Lever

1шт.

20

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

84399104

KNOB

ASSY, Incl 18, 19

1шт.

23

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

24

84366191

BOWDEN CONTROL

Gearshift Control, LH, ASSY, Incl 20 (Qty 1), 25

1шт.

25

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 24

1шт.

26

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 27

1шт.

27

84366192

BOWDEN CONTROL

Gearshift Control, RH, ASSY, Incl 20 (Qty 1), 26

1шт.

28

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.
