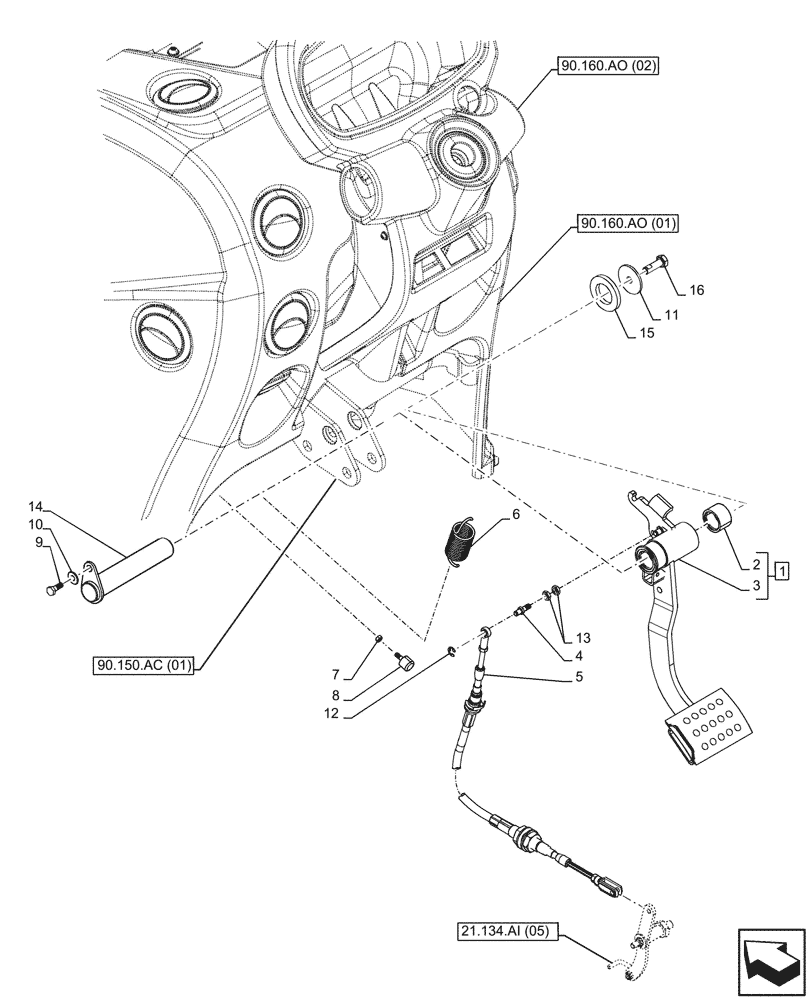

Запчасти Case IH FARMALL 120C (18.100.AF[02]) - VAR - 330276, 334176 - CLUTCH, PEDAL, FLEXIBLE CONTROL (12X12) (12X12 CREEPER) (18) - CLUTCH

1

84584926

PEDAL

ASSY, Incl 2, 3

1шт.

2

84394202

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 20mm W

2шт.

3

NSS

NOT SOLD SEPARAT

Clutch Pedal, Incl in 1

1шт.

4

47802752

PIN

1шт.

5

84367468

CLUTCH,912.8mm

1шт.

6

84545385

SPRING,Extension, 40mm OD, 89mm L

1шт.

7

15896414

NUT,M5, Cl 8

1шт.

8

5115768

STOP

1шт.

9

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

10

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

11

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

1шт.

12

800-316

CIRCLIP,M6

1шт.

13

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

14

47816101

PIN,25mm OD x 92.5mm L

1шт.

15

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

1шт.

16

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

1шт.
