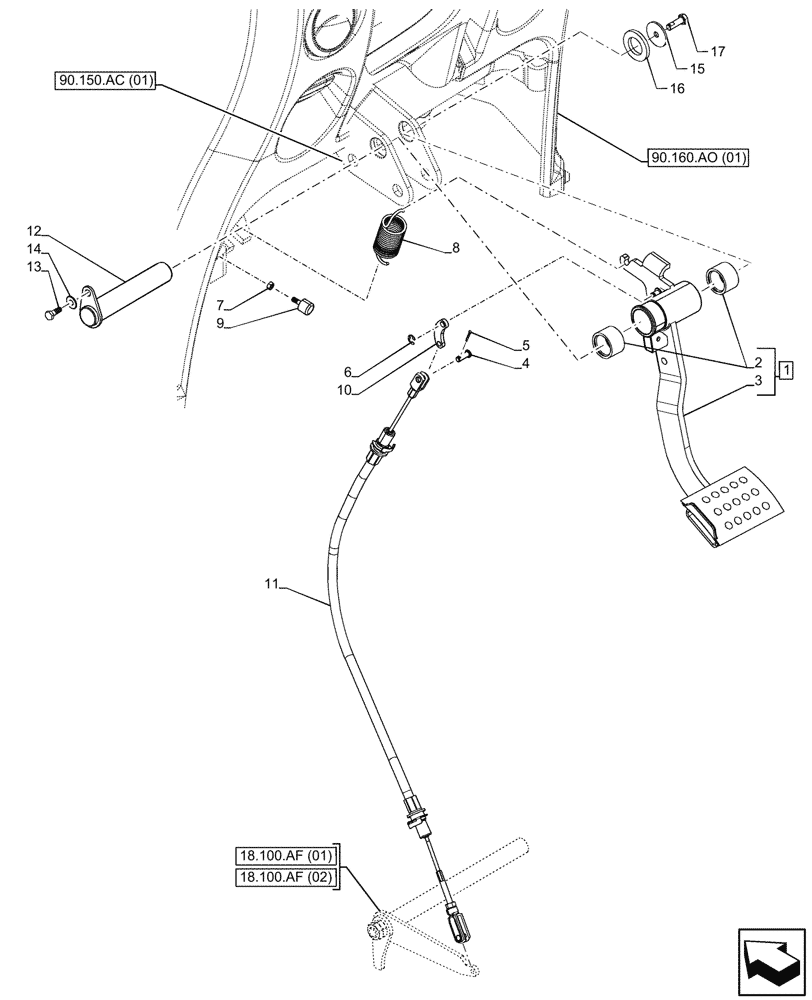

Запчасти Case IH FARMALL 120C (18.100.AF[01]) - VAR - 390067, 743546, 744576 - CLUTCH, PEDAL, FLEXIBLE CONTROL (8X8) (12X12) (12X12 CREEPER) (18) - CLUTCH

1

47717677

PEDAL

ASSY, Incl 2, 3

1шт.

2

84394202

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 20mm W

2шт.

3

NSS

NOT SOLD SEPARAT

Clutch Pedal, Incl in 1

1шт.

4

10004911

PIN,6mm OD x 17mm L

M6 x 17mm HTS ZND

1шт.

5

10794401

COTTER PIN,M2 x 10

1шт.

6

11087871

CIRCLIP,M7

1шт.

7

15896414

NUT,M5, Cl 8

1шт.

8

5120395

SPRING,Extension, 19.8mm OD x 103mm L

1шт.

9

5115768

STOP

1шт.

10

47717045

BRACKET

1шт.

11

84372792

FLEXIBLE LINK,752mm

1шт.

12

47816101

PIN,25mm OD x 92.5mm L

1шт.

13

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

14

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

15

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

1шт.

16

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

1шт.

17

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

1шт.
