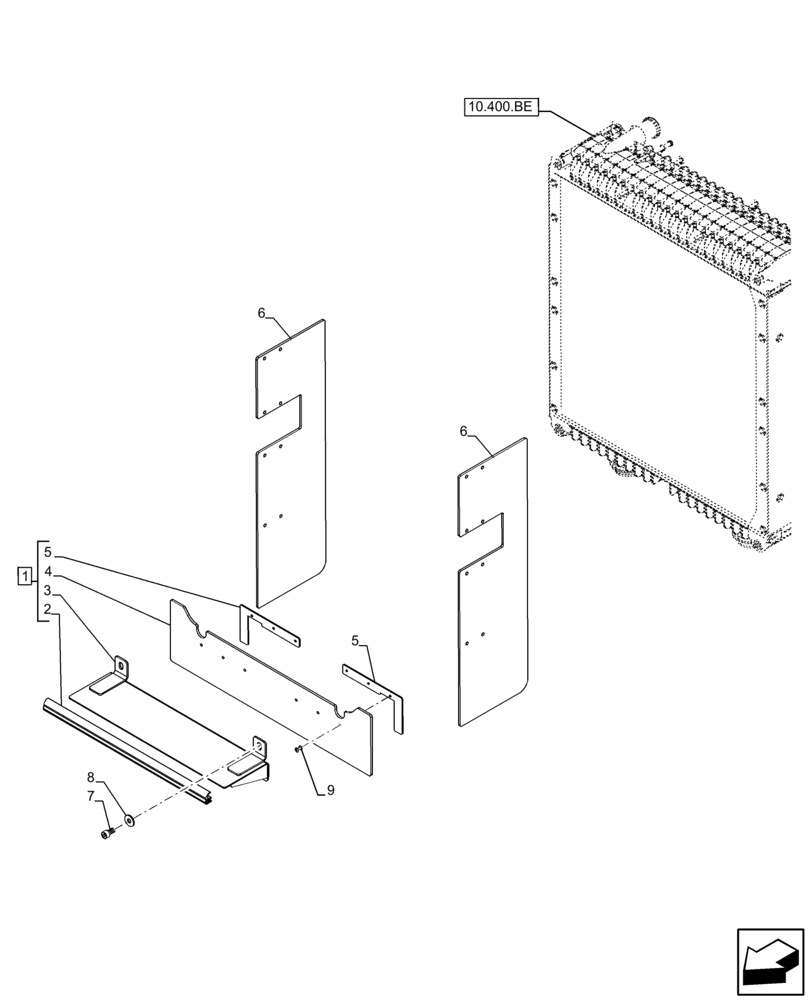

Запчасти Case IH FARMALL 120C (10.400.BF[01]) - VAR - 390018 - RADIATOR, FAN, SHROUD (10) - ENGINE

1

47631737

BAFFLE

ASSY, Incl 2 - 5

1шт.

2

47394166

PROTECTION STRIP,410mm L

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

4

47631736

RUBBER SEAL,507mm L

1шт.

5

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

2шт.

6

47417966

SEAL,548mm L

2шт.

7

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

9

14642194

RIVET,Tr Hd, M3.9 x 14, Aluminum

6шт.
