(10.310.AB) - VAR - 336839 - AFTERCOOLER LINE

Запчасти Case IH FARMALL 120C (10.310.AB) - VAR - 336839 - AFTERCOOLER LINE (10) - ENGINE

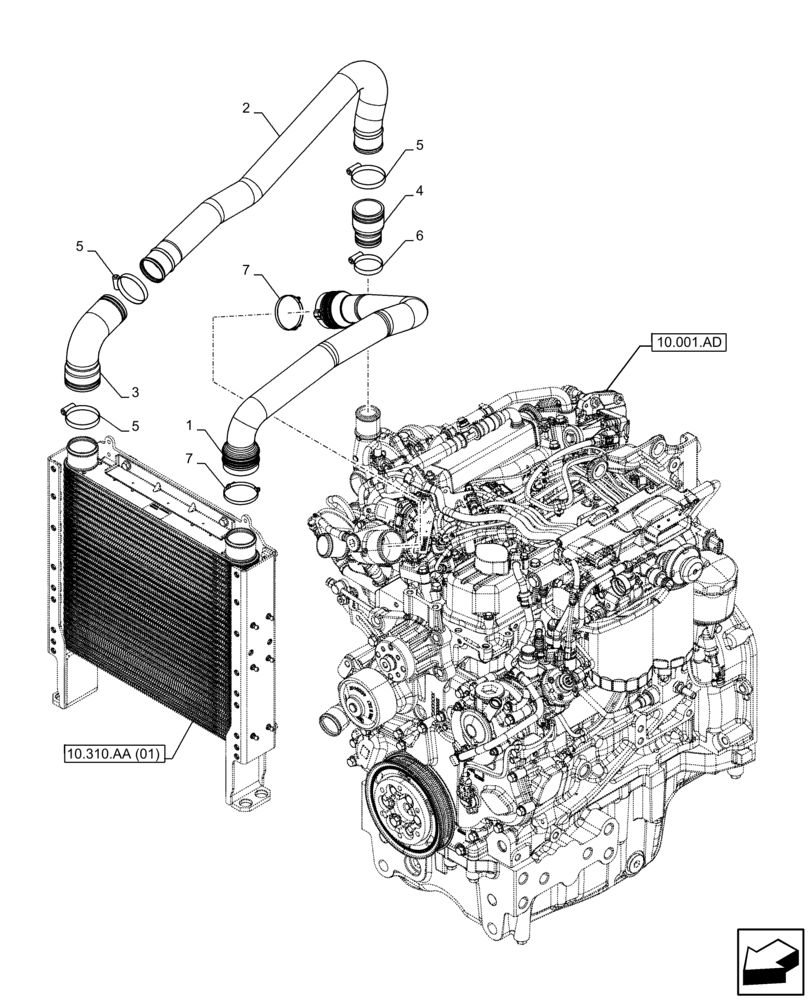

Схема запчастей Case IH FARMALL 120C - (10.310.AB) - VAR - 336839 - AFTERCOOLER LINE (10) - ENGINE
7
1
5
5
4
7
3
2
10.001.ad
10.310.aa (01)
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84589416

TUBE

From Intercooler to Engine, Cold

1шт.

2

84421973

PIPE

From Turbocharger to Intercooler, Hot

1шт.

3

84421972

ADAPTER,48.5mm ID x 206mm L

CAC Hot

1шт.

4

84289600

SLEEVE CYLINDER,38.5mm ID x 57mm OD x 72mm L

1шт.

5

47471883

HOSE CLAMP,50mm - 70mm

3шт.

6

47471896

HOSE CLAMP,40mm - 60mm

1шт.

7

87644003

HOSE CLIP,62-70mm

2шт.
