Запчасти Case IH FARMALL 120C (90.160.BI[02]) - VAR - 340326, 340336, 340346, 340356 - CAB, TRIM, PILLAR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

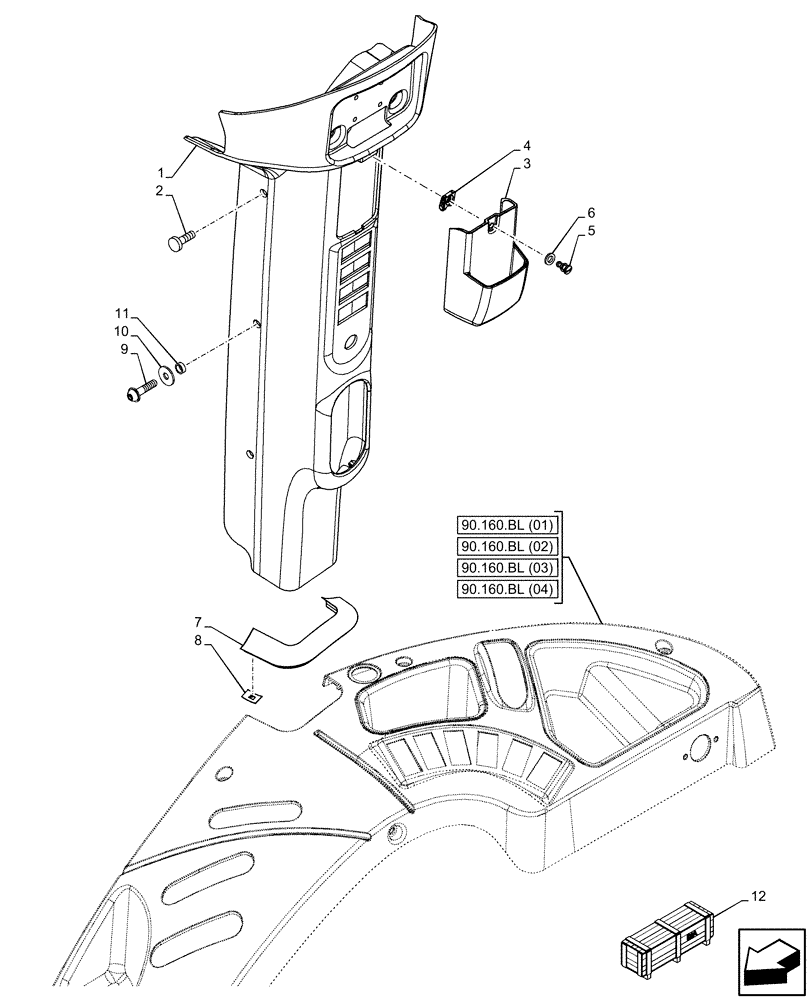

Схема запчастей Case IH FARMALL 120C - (90.160.BI[02]) - VAR - 340326, 340336, 340346, 340356 - CAB, TRIM, PILLAR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
6
4
3
5
9
11
2
8
1
10
12
7
90.160.bl (02)
90.160.bl (04)
90.160.bl (03)

Артикул

Название

Примечание

Количество

1

47477348

TRIM

RH

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

7.85 x 19.50mm

5шт.

3

84315044

SUPPORT

1шт.

4

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

5

84354393

PIN,18.8mm L

2шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

2шт.

7

84345365

RUBBER SEAL,121.9mm L

RH

1шт.

8

14183474

PUSH-ON NUT,M4, Push

5шт.

9

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

M6 x 25mm ZND

1шт.

10

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

11

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

12

719124720

DIA KIT, TRACTOR

2 Mid-mount Valves, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 13
