Запчасти Case IH FARMALL 120C (90.160.AX[02]) - VAR - 334183, 334211, 743496 - CAB HEADLINER, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

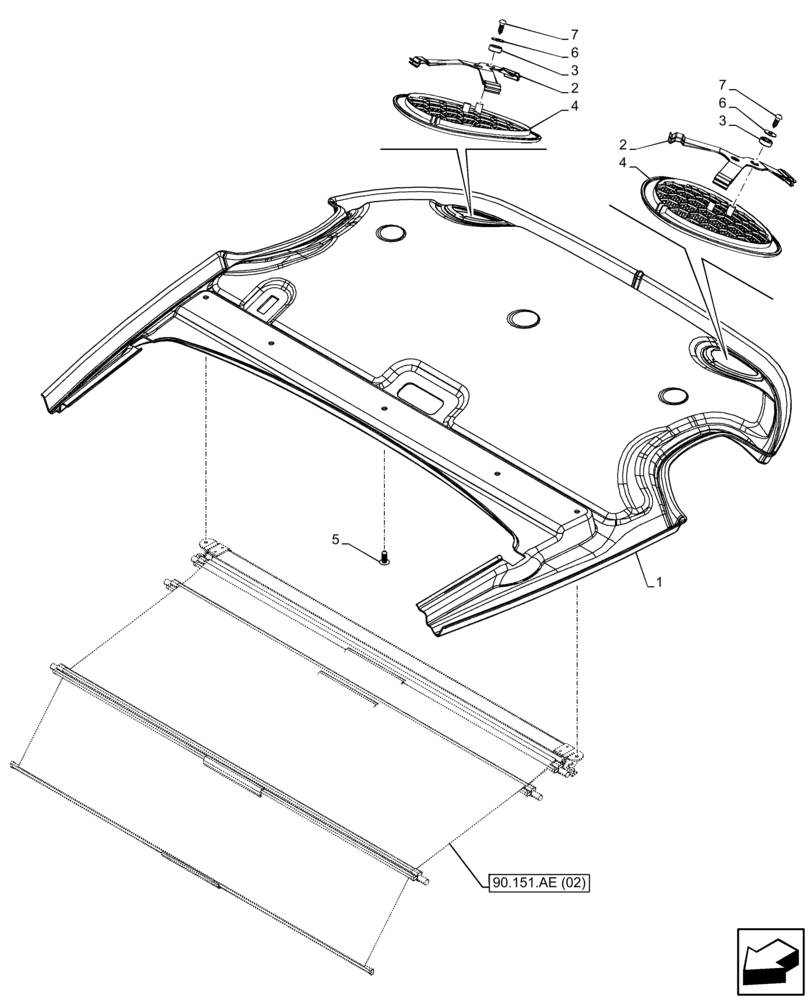

Схема запчастей Case IH FARMALL 120C - (90.160.AX[02]) - VAR - 334183, 334211, 743496 - CAB HEADLINER, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
4
2
90.151.ae (02)
2
5
6
1
6
3
7
7

Артикул

Название

Примечание

Количество

1

47536224

SOFT TRIM

Headliner, W/ Hatch

1шт.

2

47422558

BRACKET

2шт.

3

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

10mm OD x 5.7mm ID x 4mm H

4шт.

4

47422523

GRILLE

2шт.

5

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

6

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

7

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

Выбрано товаров: 7
