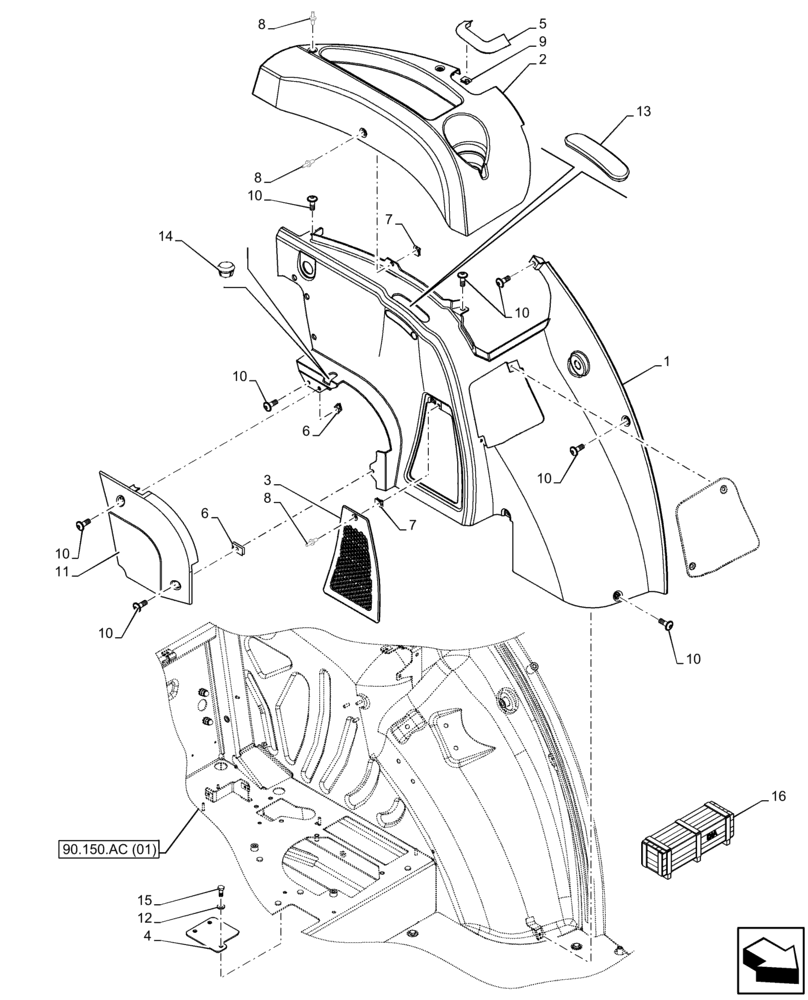

Запчасти Case IH FARMALL 120C (90.160.AM[01]) - VAR - 336125, 338125, 336780, 390124 - CAB, TRIM, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316097

TRIM PANEL

LH, Side, Wheat Color

1шт.

2

84316095

TRIM PANEL

LH, Upper

1шт.

3

84316040

FILTER COVER

LH, Wheat Color

1шт.

4

47636945

PLATE

1шт.

5

84347880

RUBBER SEAL,123.8mm L

LH

1шт.

6

14371774

SPRING NUT,M6, U, 12mm long

2шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

2шт.

8

84479751

SCREW,M6 x 12mm L

M6 x 12mm

5шт.

9

14183474

PUSH-ON NUT,M4, Push

5шт.

10

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

10шт.

11

84316574

TRIM

Wheat Color

1шт.

12

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

13

84305703

PLUG

1шт.

Less PTO Speed Selection Lever

1шт.

14

81865569

PLUG,Grommet automatic pick up

1шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

16

718121254

DIA KIT, TRACTOR

Passenger Seat - Belt, Incl 1 - 3, 5 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
