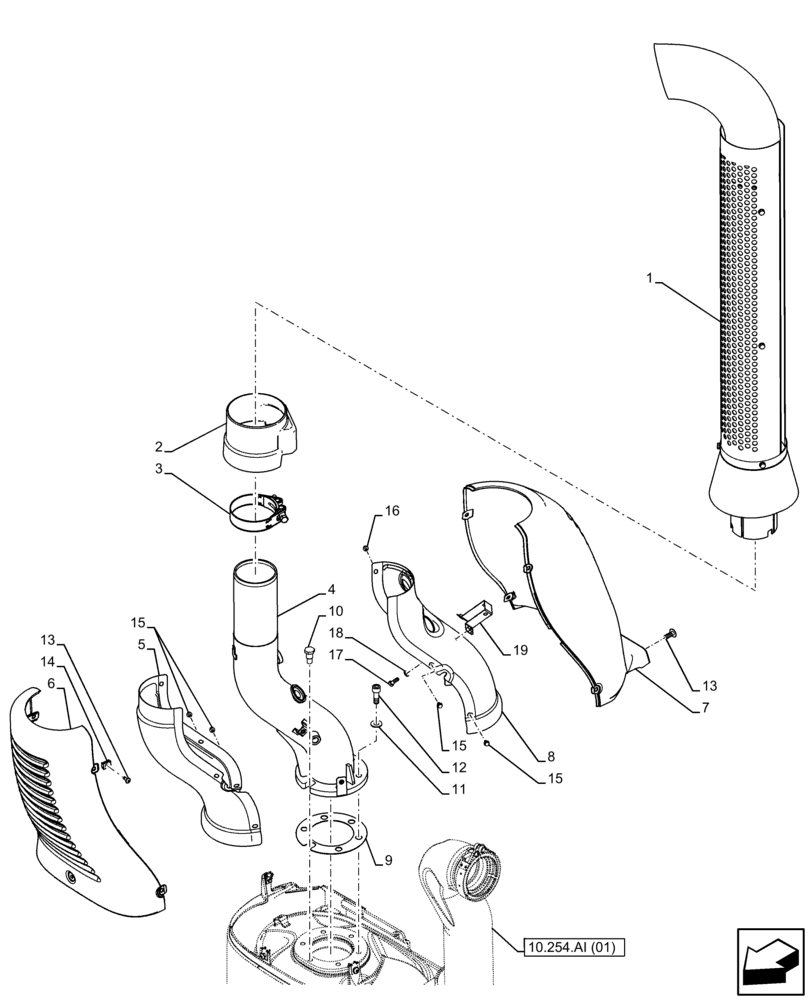

Запчасти Case IH FARMALL 120C (10.254.AD[02]) - VAR - 743545 - VERTICAL EXHAUST, EXHAUST PIPE - C9165 (10) - ENGINE

1

47639957

EXHAUST SYSTEM PIPE

1шт.

C9165 Befora Date 20 July 2015 (Jesi Plant); Before Date 14 September 2015 (Ankara Plant)

1шт.

2

47479998

HEAT SHIELD

1шт.

3

84333396

HOSE CLAMP,91mm - 97mm

1шт.

4

47572525

TUBE

1шт.

5

47572537

COVER

Lower

1шт.

6

47568273

TRIM

Black

1шт.

7

47568272

TRIM

Black

1шт.

8

47572531

COVER

Upper

1шт.

9

84482398

SEAL,90mm ID x 143mm OD x 1.5mm Thk

1шт.

10

84485378

HEADED PIN,13mm OD x 28mm L

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

12

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

13

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

4шт.

14

14189071

SPRING NUT,M6

M6

2шт.

15

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

17

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

18

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

19

47714254

BRACKET

1шт.
