Запчасти Case IH FARMALL 120C (90.150.BG[03]) - VAR - 334183, 334211, 743496 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

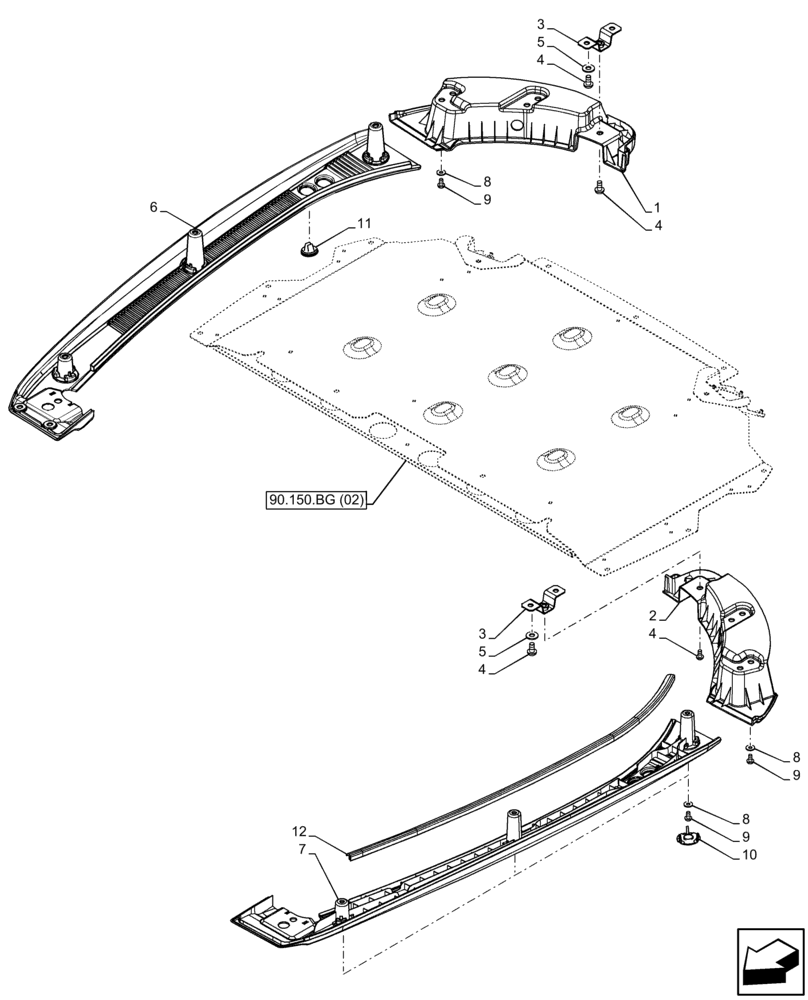

Схема запчастей Case IH FARMALL 120C - (90.150.BG[03]) - VAR - 334183, 334211, 743496 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
4
90.150.bg (02)
11
6
1
9
5
10
8
5
7
4
3
4
12
2
9
3
9
4
8

Артикул

Название

Примечание

Количество

1

84317188

PANEL

Black, RH, Rear

1шт.

2

84317189

PANEL

Black, LH, Rear

1шт.

3

84317193

BRACKET

Black

2шт.

4

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

M8 x 16mm

6шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8.15 x 17 x 2mm CST DAC

4шт.

6

47410967

PANEL

Black, RH

1шт.

7

47410992

PANEL

Black, LH

1шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

8шт.

10

84317182

PLUG,44mm OD, Black

Black

6шт.

11

84317184

PLUG,35mm OD, Black

Black

4шт.

12

84275319

RUBBER SEAL,897mm L

2шт.

Выбрано товаров: 12
