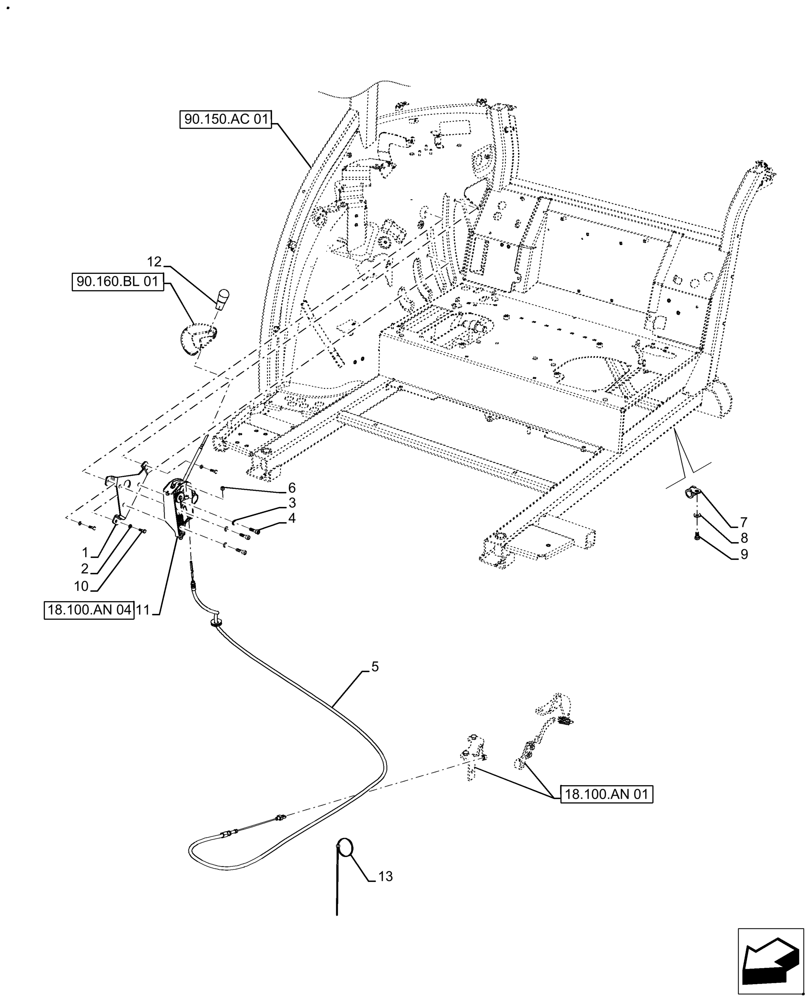

Запчасти Case IH FARMALL 120A (18.100.AN[03]) - VAR - 336939, 390844 - PTO CLUTCH, CONTROL LEVER, CAB (18) - CLUTCH

1

84300283

BRACKET

1шт.

2

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

3шт.

5

47530333

CABLE

PTO Control

1шт.

6

12574221

NUT,M6 x 1, Cl 10

1шт.

7

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

11

47685017

CONTROL LEVER

PTO

1шт.

12

5194972

KNOB

1шт.

13

83933061

STRAP

7 x 0.193 IN

1шт.
