Запчасти Case IH FARMALL 120A (18.100.AN[02]) - VAR - 336939, 390844 - PTO CLUTCH, CONTROL LEVER, W/O CAB (18) - CLUTCH

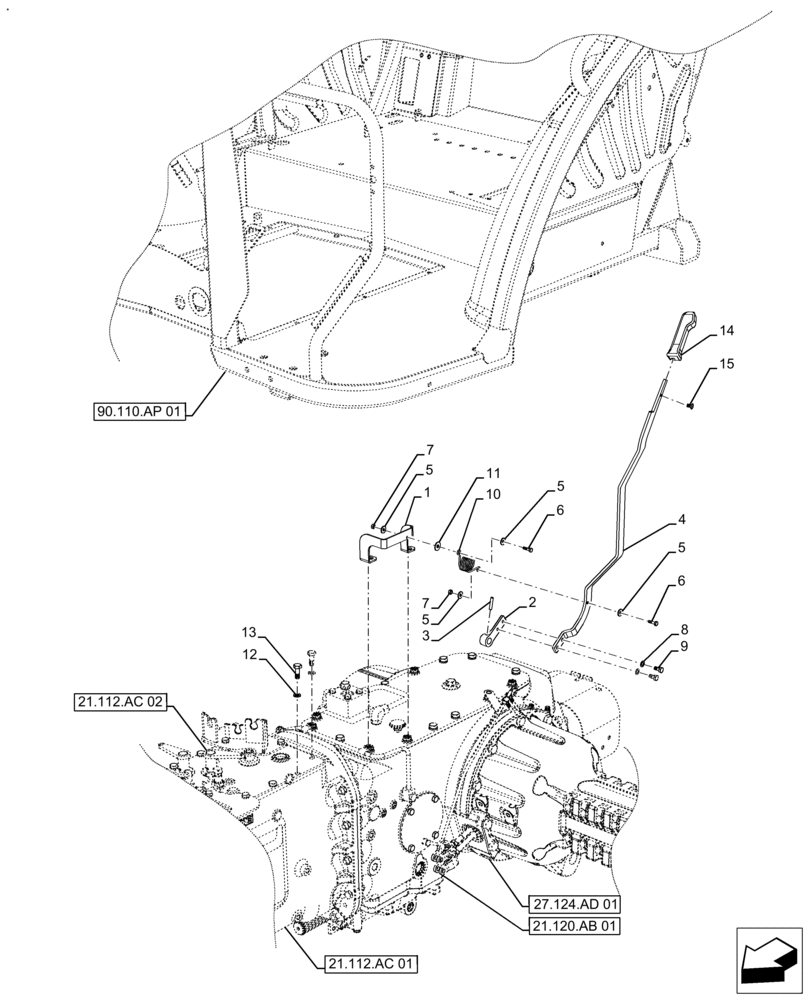

Схема запчастей Case IH FARMALL 120A - (18.100.AN[02]) - VAR - 336939, 390844 - PTO CLUTCH, CONTROL LEVER, W/O CAB (18) - CLUTCH
7
6
1
4
7
8
10
6
5
12
21.120.ab 01
13
5
11
90.110.ap 01
5
14
2
27.124.ad 01
5
9
21.112.ac 02
3
21.112.ac 01
15

Артикул

Название

Примечание

Количество

1

47447705

SUPPORT

Spring PTO Lever

1шт.

2

81874562

ARM

Power Take Off Control Handle

1шт.

3

83900510

SLOTTED PIN,1/4" x 1 1/4" L

1шт.

4

73336934

CONTROL LEVER

PTO

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

9

83907572

SCREW,Hex, M8 x 16, G8

2шт.

10

73335239

TORSION SPRING

1шт.

11

83916712

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

1шт.

12

85700672

LOCK WASHER,M10

2шт.

13

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

82984389

KNOB

PTO Control

1шт.

15

82861101

SCREW,Phil Oval Hd, Csk, M6 x 10mm, Cl 4.8, Full Thd

1шт.

Выбрано товаров: 15
