Запчасти Case IH FARMALL 120A (18.100.AF[02]) - VAR - 390340 - CLUTCH, CONTROL, MECHANICAL REVERSE (18) - CLUTCH

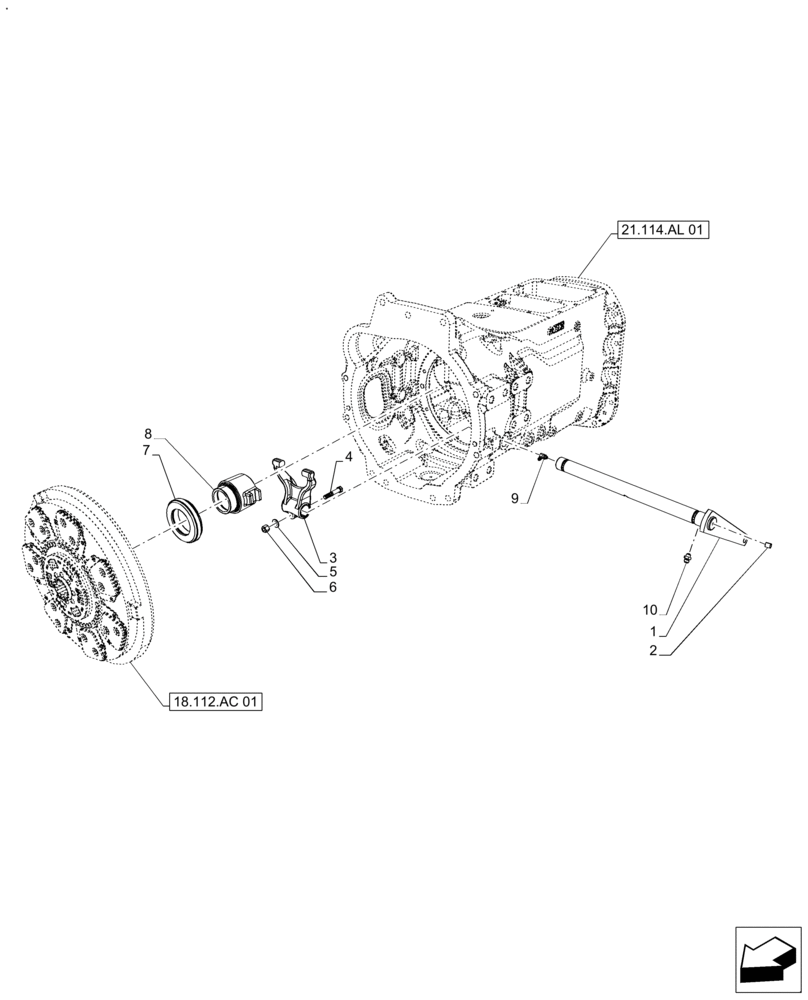

Схема запчастей Case IH FARMALL 120A - (18.100.AF[02]) - VAR - 390340 - CLUTCH, CONTROL, MECHANICAL REVERSE (18) - CLUTCH
5
8
7
3
18.112.ac 01
4
6
21.114.al 01
1
10
9
2

Артикул

Название

Примечание

Количество

1

47917945

SHAFT

Clutch Release

1шт.

2

87042

SET SCREW,1/4" - 28 x 1/4"

1шт.

3

83959190

FORK

Clutch Release Shaft

1шт.

4

81866741

BOLT,3/8" - 16 x 54mm, Gr 8

1шт.

5

83907387

LOCK WASHER,3/8"

1шт.

6

83959187

LOCK NUT,3/8"-16

1шт.

7

82010859

BEARING ASSY,63.5mm ID x 103.38mm OD x 22.1mm W

Clutch Release

1шт.

8

83992559

HUB

Clutch Release Bearing

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

10

83416243

LUBE NIPPLE,1/4"-28 x .54" L

1шт.

Выбрано товаров: 10
