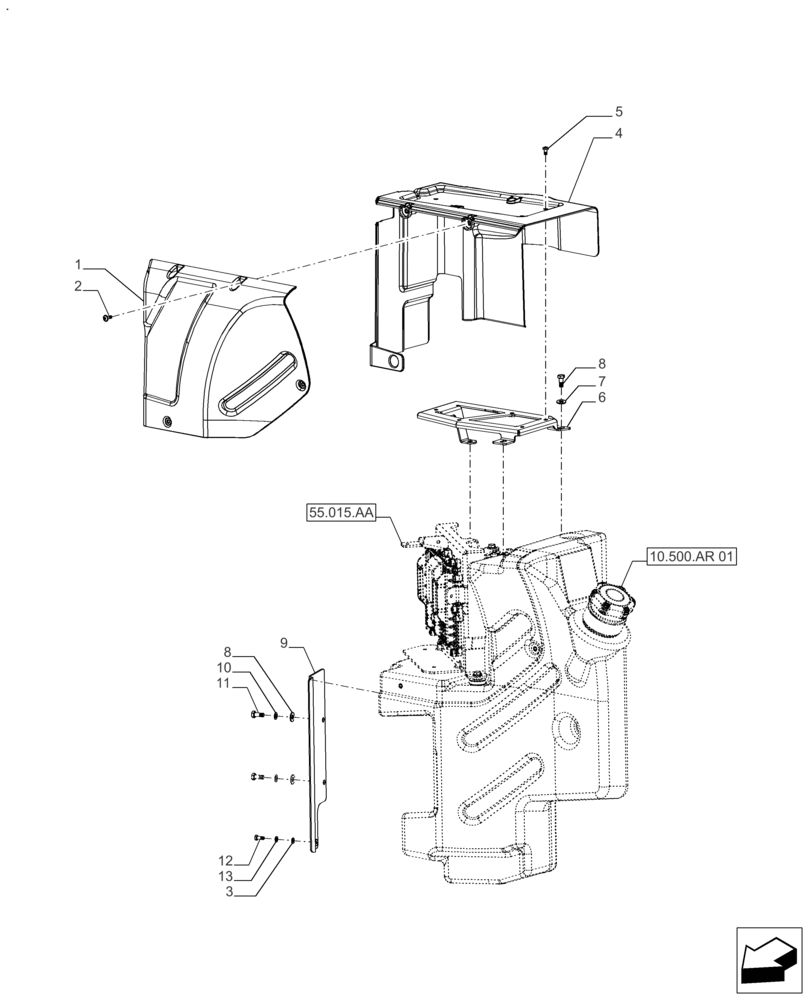

Запчасти Case IH FARMALL 120A (10.500.AR[02]) - VAR - 391270 - PROTECTION, UREA TANK (10) - ENGINE

1

47618238

COVER

Up Urea Tank, LH

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

4шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

4

47540522

COVER

Up Urea Tank, RH

1шт.

5

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

5шт.

6

47632770

FRAME

Cover Urea Tank

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

9

47632790

COVER

UQS Harness

1шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.
