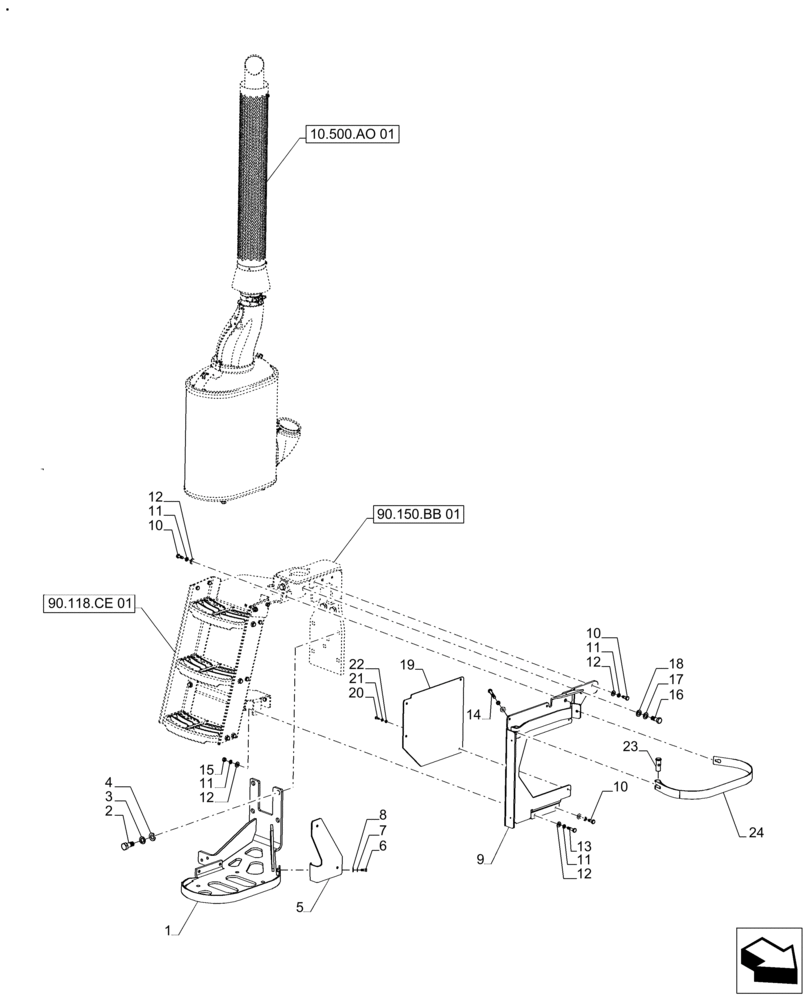

Запчасти Case IH FARMALL 120A (10.500.AO[03]) - VAR - 390199 - SCR SUPPORT (10) - ENGINE

1

47493702

SUPPORT

Support, Assy. SCR

1шт.

2

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

3

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

4шт.

4

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

5

47860792

SUPPORT

Support Assy. SCR Cover

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

47860720

SUPPORT

Support Assy. Side SCR

1шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

11

85700672

LOCK WASHER,M10

6шт.

12

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

13

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

14

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.

15

86500689

NUT,M10 x 1.5, Cl 10

1шт.

16

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

1шт.

17

10572179

LOCK WASHER,M16

1шт.

18

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

19

47574603

GUARD

Side Sup SCR

1шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

21

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

22

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

47683786

PIN

Pin, For Strap

1шт.

24

47588233

STRAP

Assy. SCR

1шт.
