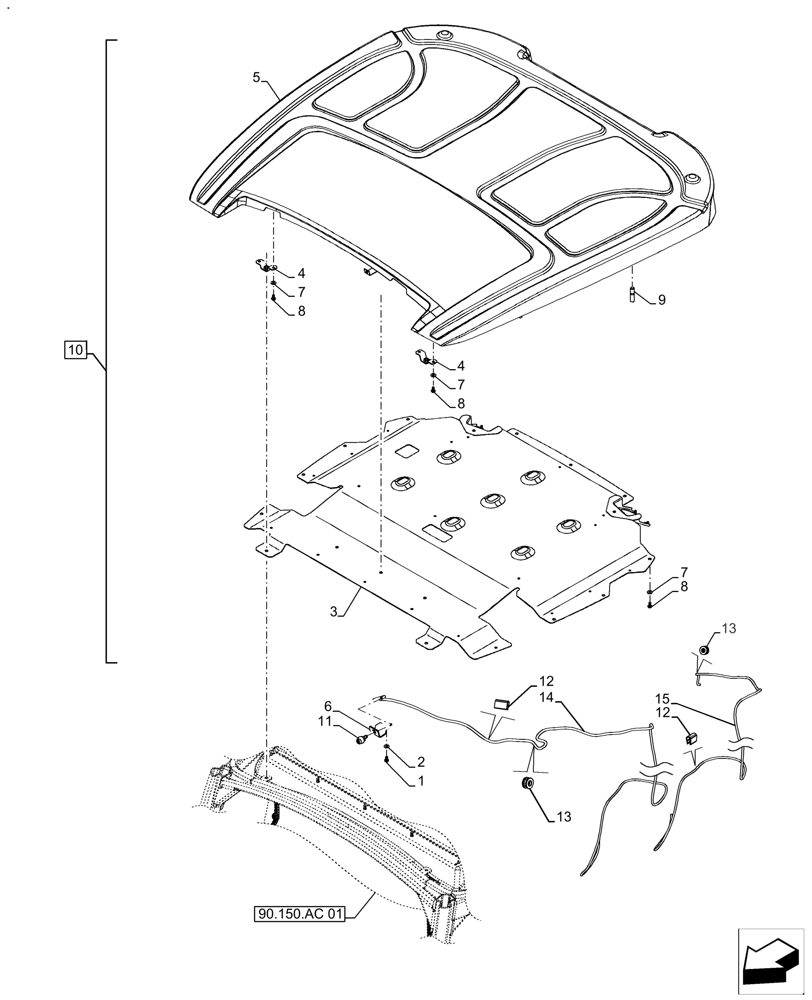

Запчасти Case IH FARMALL 120A (90.150.BG[03]) - VAR - 391126 - CAB ROOF, SHEET, LESS WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

2

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

3

47547783

SHEET

1шт.

4

84310794

BRACKET

2шт.

5

47711988

Roof

1шт.

6

47613002

BRACKET

1шт.

7

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

18шт.

8

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

18шт.

9

13516924

STUD,M8 x 34mm L, Cl. 8.8

4шт.

10

47711992

ROOF

Incl 3 - 5, 7, 8

1шт.

11

82030998

NOZZLE

1шт.

12

48095459

Hose, Self Adhesive

CLIP

6шт.

13

47450784

GROMMET

2шт.

14

47841901

HOSE

1шт.

15

47841898

HOSE

1шт.
