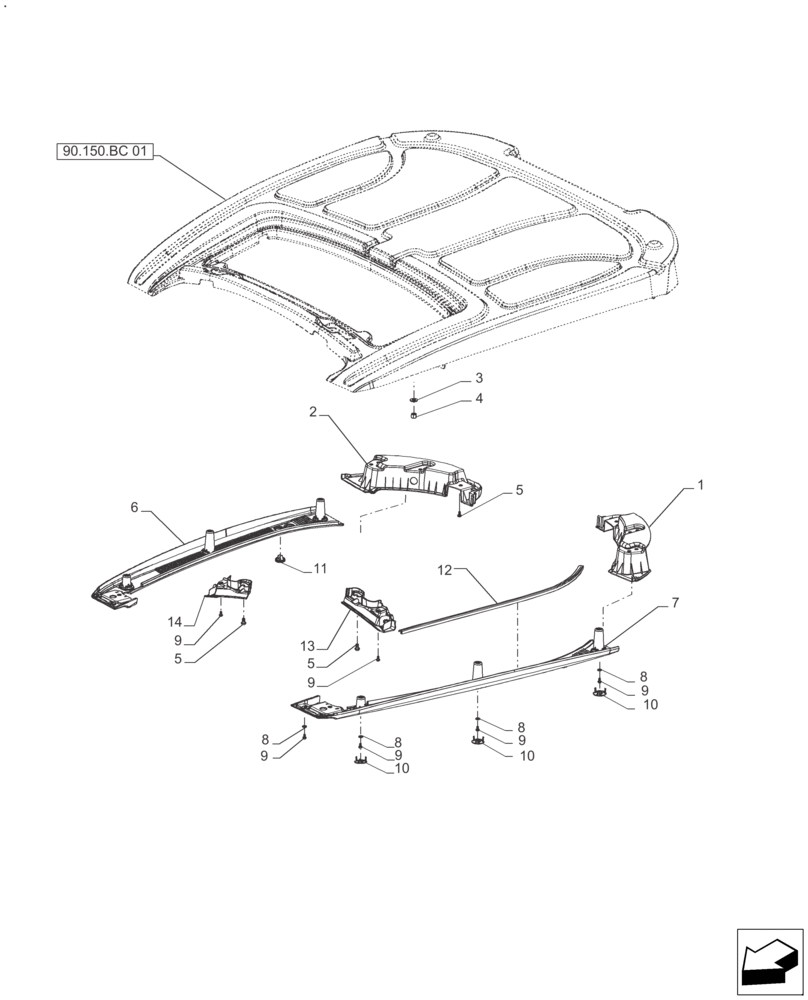

Запчасти Case IH FARMALL 120A (90.150.BC[02]) - VAR - 334743 - ROOF, HATCH, HINGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84317680

PANEL

LH

1шт.

2

84317681

PANEL

RH

1шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

412250

NUT,M8 x 1.25, Cl 8

4шт.

5

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

4шт.

6

47410967

PANEL

RH

1шт.

7

47410992

PANEL

LH

1шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

10шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

12шт.

10

84317182

PLUG,44mm OD, Black

6шт.

11

47841894

PLUG

4шт.

12

84275319

RUBBER SEAL,897mm L

2шт.

13

84317669

COVER

LH, Hinge Hatch

1шт.

14

84317671

COVER

RH, With Hatch

1шт.
