Запчасти Case IH FARMALL 120A (90.124.AL) - VAR - 336923 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

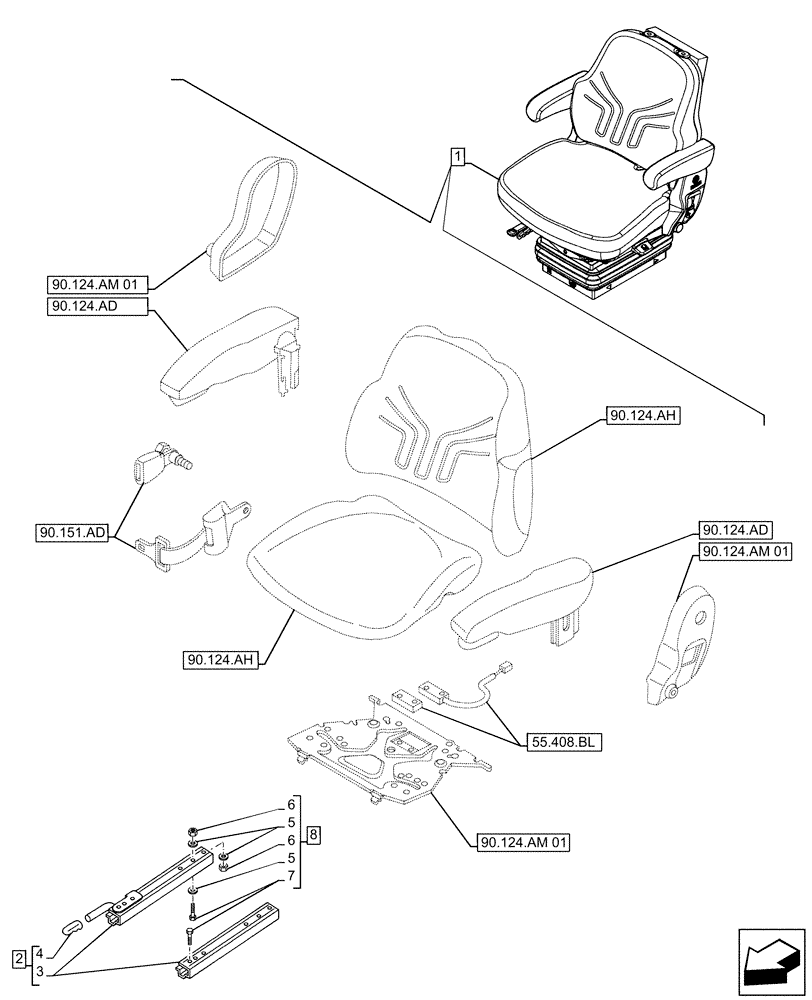

Схема запчастей Case IH FARMALL 120A - (90.124.AL) - VAR - 336923 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad
5
1
7
2
3
4
6
5
8
6
90.124.am 01
90.124.am 01
90.124.am 01
90.124.ad
90.124.ad
55.408.bl
90.124.ah
90.124.ah

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

Assy. Fabric, Wheat, Incl 2 - 8

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.408, 90.124, 90.151

1шт.

2

87331929

SET OF PARTS

LH and RH Rails, Assy. Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Rails, Incl in 2

1шт.

4

9971715

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 8

1шт.

6

NSS

NOT SOLD SEPARAT

Washer, Incl in 8

1шт.

7

NSS

NOT SOLD SEPARAT

Nut, Incl in 8

1шт.

8

47540052

KIT

Fixing Parts, Assy. Incl 5 - 7

1шт.

Выбрано товаров: 10
