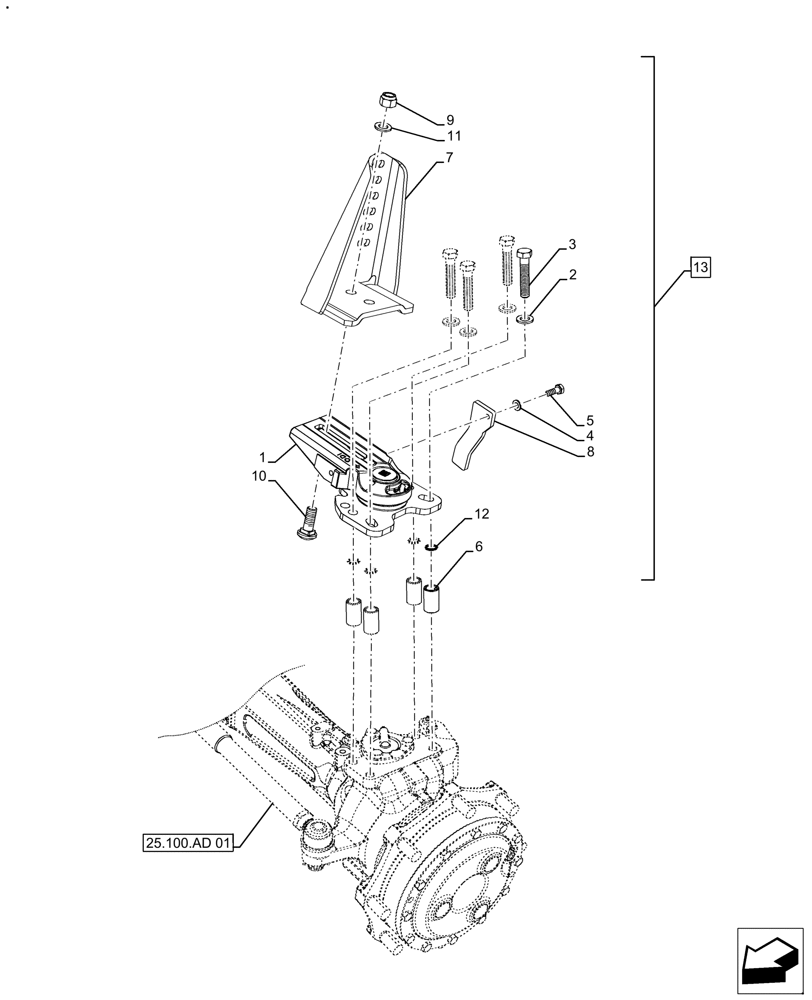

Запчасти Case IH FARMALL 120A (90.116.BA[03]) - VAR - 336940 - FRONT FENDER, SUPPORT, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47457429

HUB

LH

1шт.

2

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

3

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

4шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

5

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

6

87543524

SPACER,45mm

4шт.

7

47802230

SUPPORT

Fender Upright

1шт.

8

47661404

STOP

LH

1шт.

9

47132634

NUT,M18, 1.5mm Pitch

1шт.

10

47132633

SCREW,M18 x 1.5, Cl 8.8

M18 x 15 8.8 ZG

1шт.

11

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

19 Dia UNI 65920 ZG

1шт.

12

87611913

GASKET

4шт.

13

47802229

HUB

Assy. LH, Incl 1 - 7, 9 - 12

1шт.
