(88.100.55[07]) - VAR - 718149 - DIA KIT, WINDOW, REAR, WIPER AND WASHER

Запчасти Case IH FARMALL 120A (88.100.55[07]) - VAR - 718149 - DIA KIT, WINDOW, REAR, WIPER AND WASHER (88) - ACCESSORIES

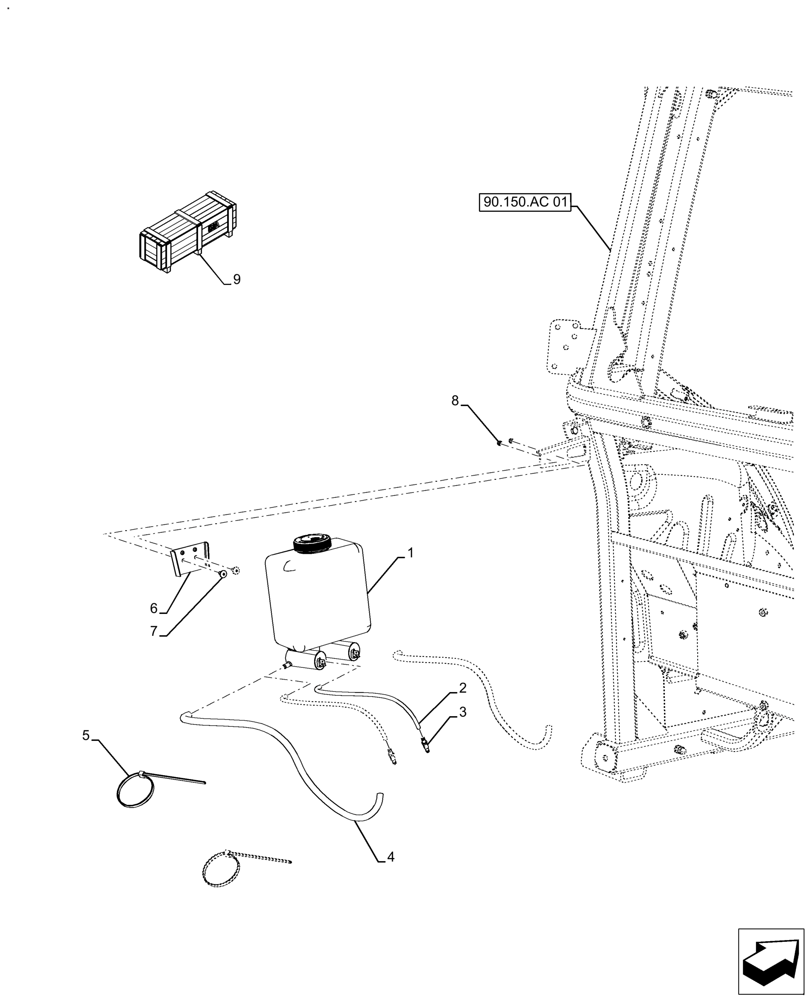

Схема запчастей Case IH FARMALL 120A - (88.100.55[07]) - VAR - 718149 - DIA KIT, WINDOW, REAR, WIPER AND WASHER (88) - ACCESSORIES
90.150.ac 01
3
8
6
5
2
4
7
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47837340

RESERVOIR, WINDSHIEL

1шт.

2

47841904

HOSE WASHER

L150

2шт.

3

5136113

VALVE

For Windshield Washer

2шт.

4

47841906

CONDUIT

Slit NW7

2шт.

5

83933061

STRAP

Cable Tie, 7 x 0.193in

2шт.

6

47358647

BRACKET

Tank

1шт.

7

14071914

SCREW,Cheese Hd, M5 x 12mm, Cl 5.8

2шт.

8

86507065

NUT,M5 x .8, Cl 10

2шт.

9

47805427

DIA KIT, TRACTOR

Rear Window Washer and Wiper, Incl 1 - 8

1шт.
