(88.100.35[24]) - VAR - 720370 - DIA KIT, TRAILER BRAKE

Запчасти Case IH FARMALL 120A (88.100.35[24]) - VAR - 720370 - DIA KIT, TRAILER BRAKE (88) - ACCESSORIES

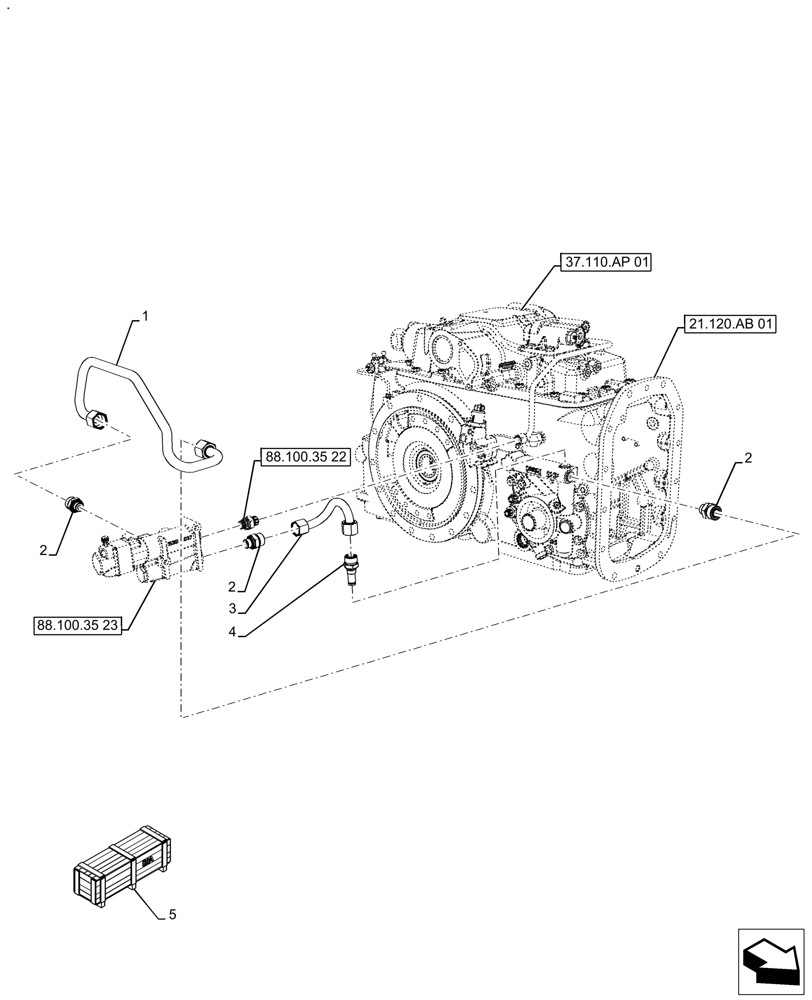

Схема запчастей Case IH FARMALL 120A - (88.100.35[24]) - VAR - 720370 - DIA KIT, TRAILER BRAKE (88) - ACCESSORIES
21.120.ab 01
2
5
2
3
2
4
1
88.100.35 22
88.100.35 23
37.110.ap 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82012692

RIGID TUBE

Trailer Brake Actuating Valve

1шт.

2

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

3шт.

3

82012693

RIGID TUBE

Hydraulic Pump to Valve

1шт.

4

81862770

HYD CONNECTOR

Oil Pressure

1шт.

5

48048942

KIT

Trailer Brake, Incl 1 - 4

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
