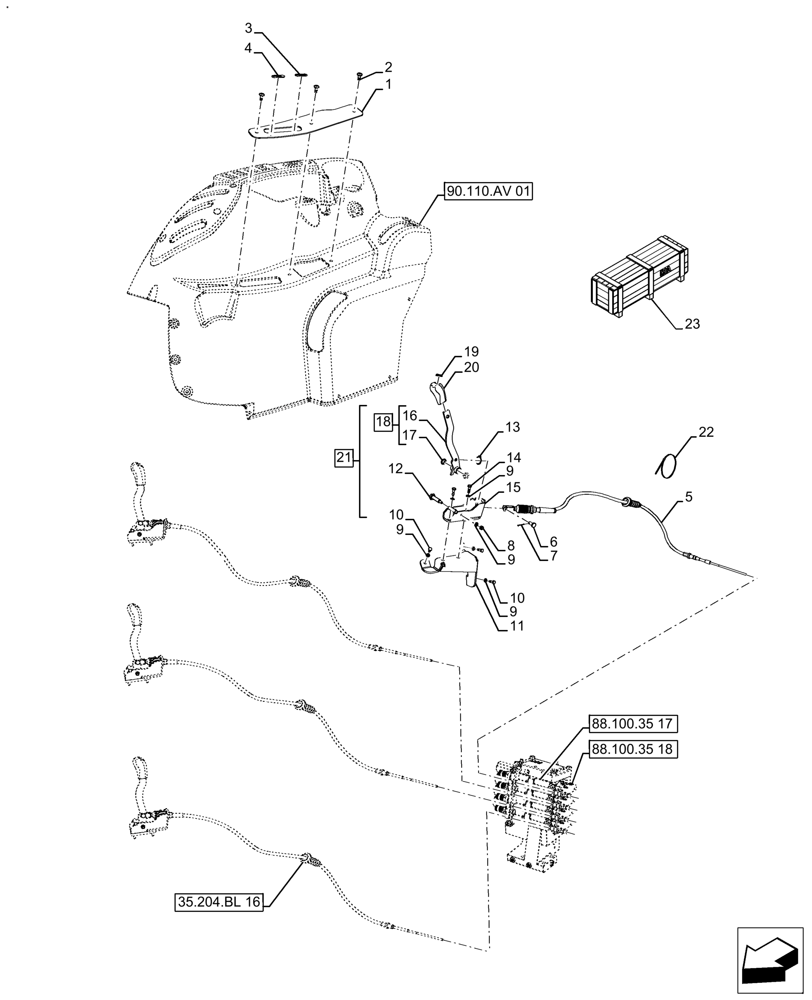

Запчасти Case IH FARMALL 120A (88.100.35[20]) - VAR - 342522 - DIA KIT, CONVERSION KIT FROM 3 TO 4 VLAVES, ROPS (88) - ACCESSORIES

1

47644772

COVER

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

3

47695823

DECAL

Four Valve Remote Down

1шт.

4

47695898

DECAL

Four Valve Remote Up

1шт.

5

48011031

CABLE

Cable Assy. Remote Control Valve

1шт.

6

385818

CLEVIS PIN,M8 x 20

1шт.

7

81813879

COTTER PIN,1/16" x 3/4"

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

11

47644768

SUPPORT

Assy. Remote 4 Valve

1шт.

12

84487136

PIN,M6 x 1, 49.5mm L

1шт.

13

81865873

CLIP,19.40mm D

Hyd. Remote Control Valve

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

15

47687173

SUPPORT

Assy. Lever, Remote Valve

1шт.

16

47864993

LEVER

Assy. Remote Valve

1шт.

17

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

18

47861016

LEVER

Assy. with Bushing, Incl 16, 17

1шт.

19

87698517

DATA PLAQUE

1шт.

20

47056482

KNOB

1шт.

21

47861017

SUPPORT

Remote Valve, Incl 8, 9 (Qty 1), 12, 15 - 18

1шт.

22

83933061

STRAP

Cable Tie 7 x .193in

1шт.

23

47929610

KIT

Dia Kit, Conversion from 3 to 4 Valves, Incl 1 - 22

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
